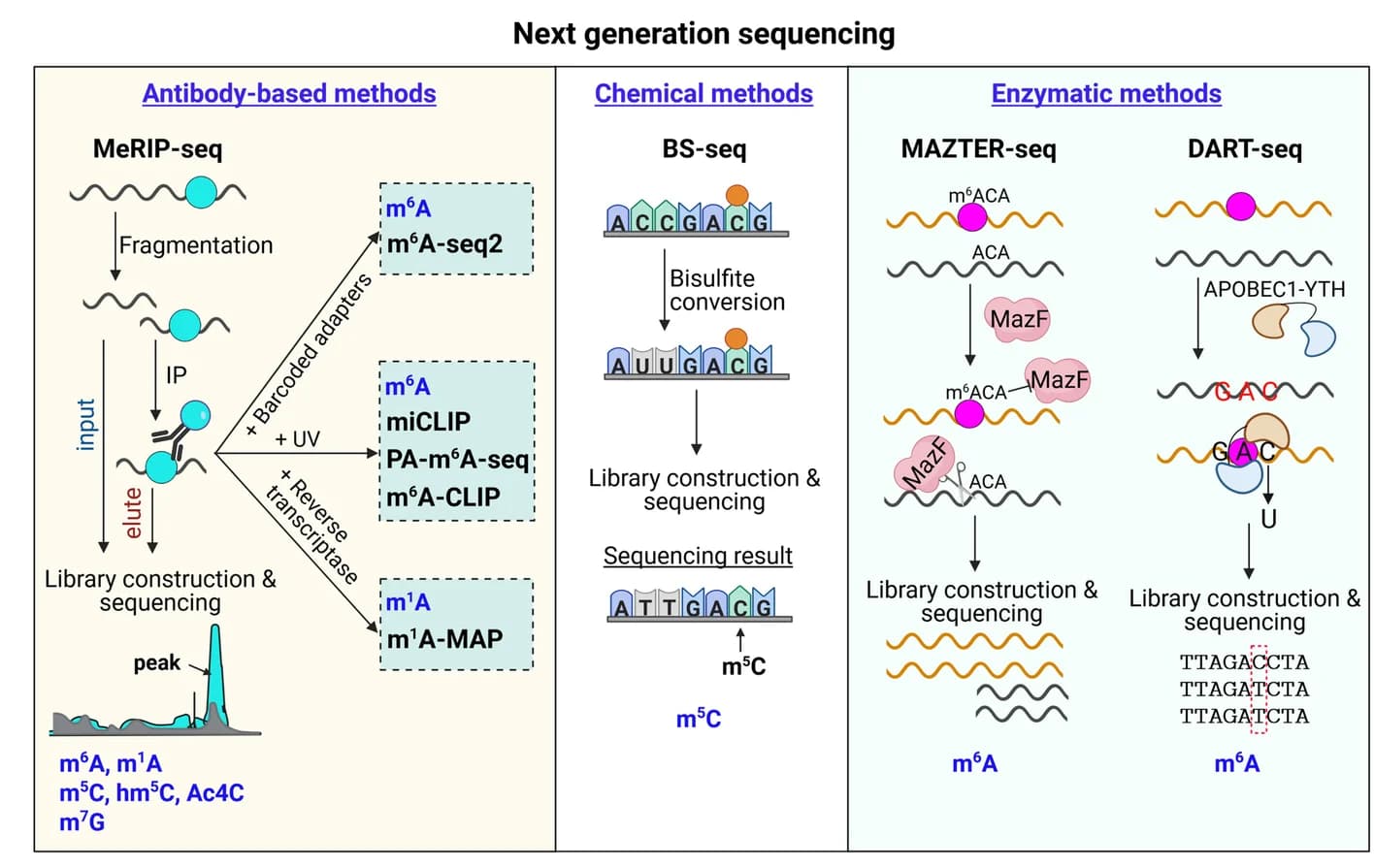

Approaches for mapping RNA modifications. Techniques coupling next generation sequencing with antibody-, chemical-, and enzyme-based approaches are shown in the upper panels, while nanopore direct RNA sequencing is illustrated in the lower panel.
#Workflow#Illustration#RNA modification#Next generation sequencing#Antibody-based approach#Chemical-based approach#Enzyme-based approach#Nanopore direct RNA sequencing
