Line Plot from Scientific Research

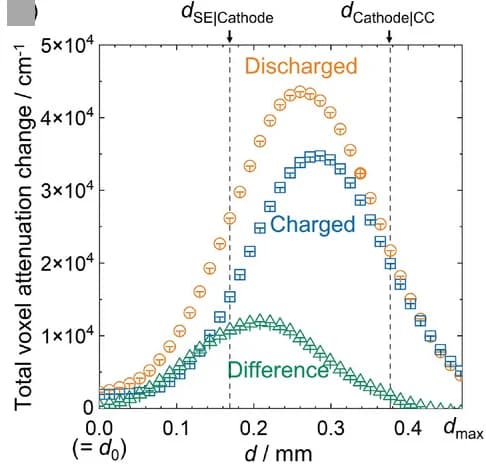

Total neutron attenuation change for 13 m thick slices through the cathode composite for the discharged (orange) and recharged states (blue). The latter represents the lithium trapped in the cathode. The difference between the two charged states represents the mobile lithium (green). The data are displayed with error bars corresponding to the standard deviation.

DOI
