Line Plot from Scientific Research

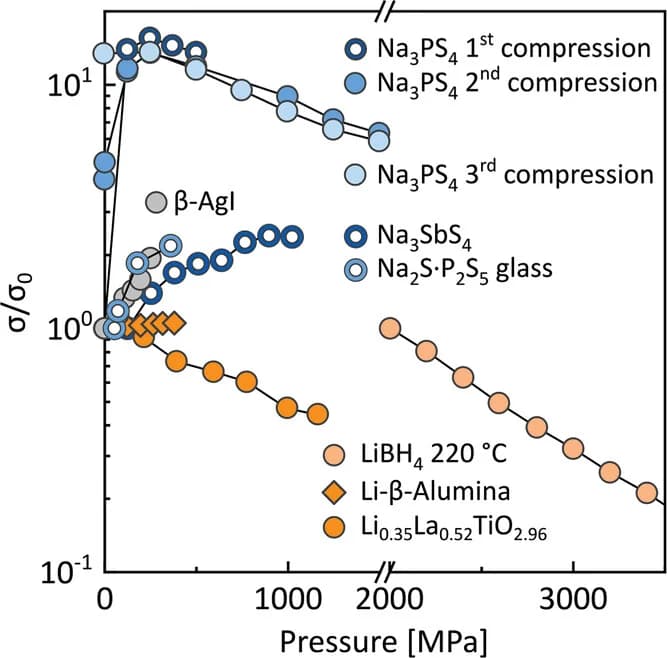

Pressure behavior of Na3PS4,[16] Na3SbS4,[15] Na2S·P2S5 glass,[19] β-AgI,[8] LiBH4,[12] Li-β-alumina,[14] and Li0.35La0.52TiO2.96[13] (LLTO) ion conductors extracted from literature. The conductivities σ were normalized to the conductivity σ0 measured at the lowest available pressure to better compare literature data that is otherwise several orders of magnitude apart.
