Line Plot from Scientific Research

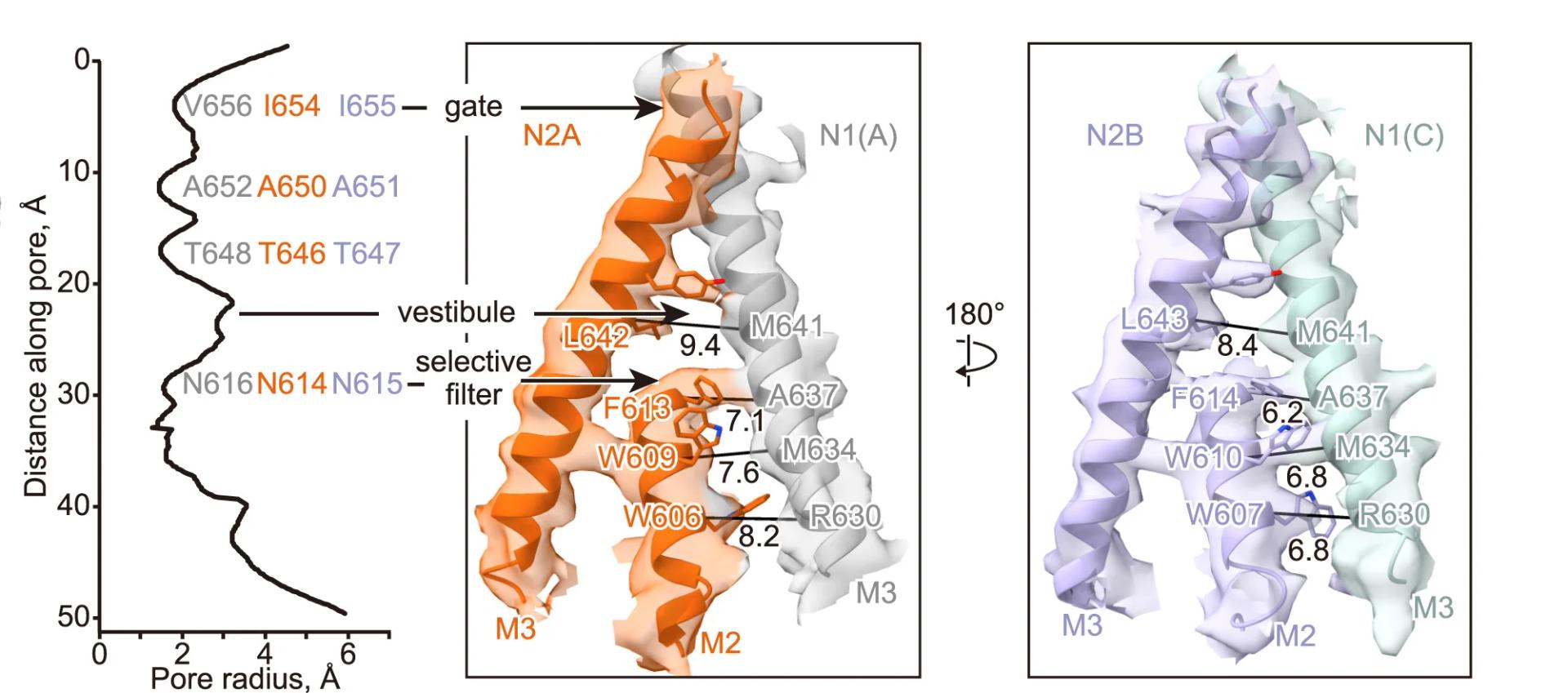

HOLE analysis of tri-eNMDAR is shown on the left panel. Middle and right panels show the side views of the TMD arrangement between GluN1(A)-N2A and GluN1(C)-N2B from the opposite views marked with eye labels in (E). Ca-Ca distance comparisons of four residue pairs between GluN2A/N2B and neighboring GluN1 subunits indicate the asymmetric arrangement of GluN2-M2/M3 and GluN1-M3. See alsoFigure S4.
