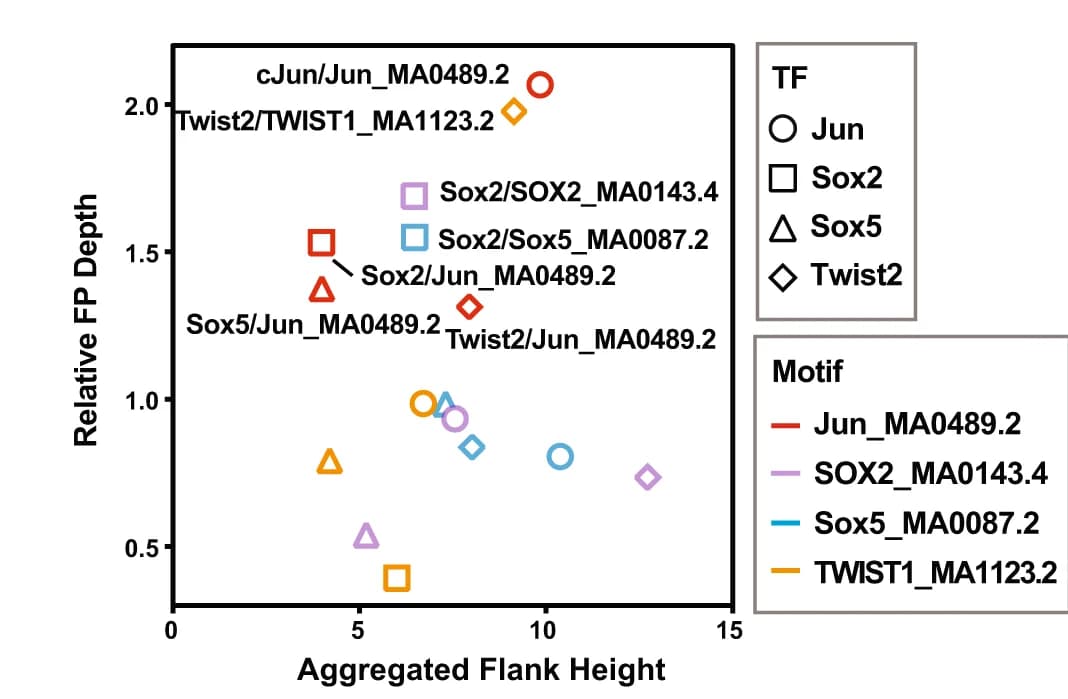

Scatter plot representing Relative FP Depths and the corresponding Aggregated Flank Heights of the indicated TFs at the sites matching the indicated motifs. TFs are represented by shapes (Jun: circle; Sox2: square; Sox5: triangle; Twist2: diamond). JASPAR motifs are presented by line colors (Jun_MA0489.2: red; SOX2_MA0143.4: purple; Sox5_MA0087.2: blue; TWIST1_MA1123.2: orange).
