Stacked Bar Plot from Scientific Research

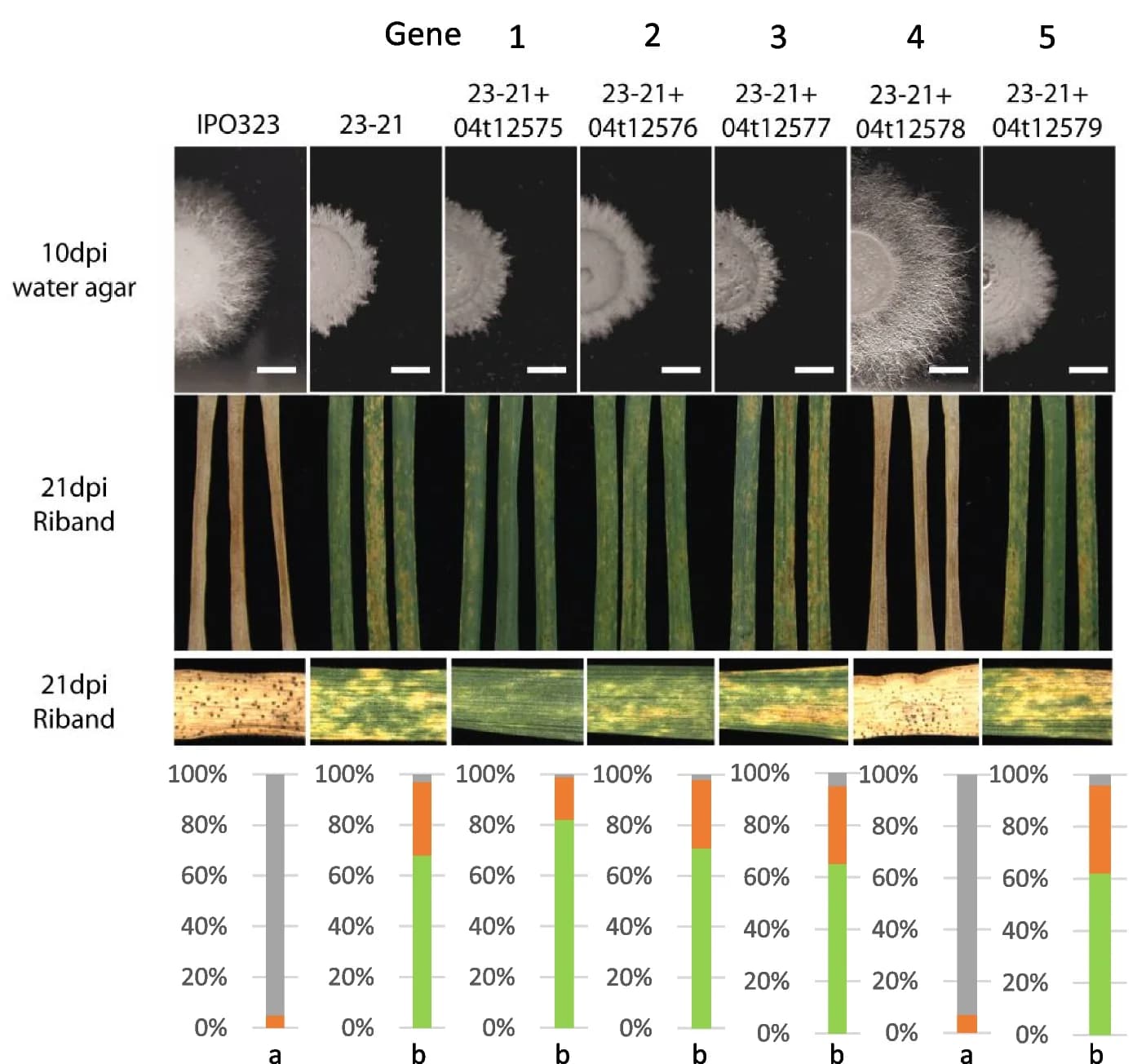

Functional complementation assays. Strain 23-21 had each of the five genes re-introduced separately by genetic complementation. Upper panels show effects on filamentous growth on poor nutrient agar. Middle panels show representative plant infection images at 21 dpi for one of multiple tested complemented isolates for each gene. Lower panel shows the quantification of disease levels using Lemna Grid image analysis system. Complementation by gene 4 encoding a predicted nucleoside diphosphate kinase (NDK) alone resulted in full restoration of pathogenicity in the 23-21 mutant. a and b indicate statistically significant differences ( p < 0.001) between green leaf areas for the tested treatments.
