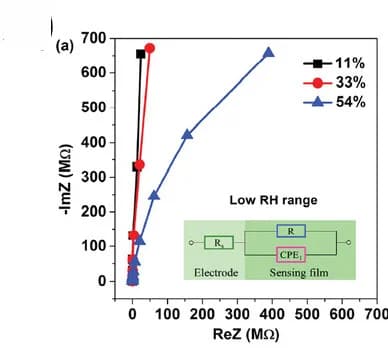

Supramolecular humidity sensors with proton/ion-transport sensing mechanism. a,b) Complex impedance property of the CdL sensor at various RH ranges: a) 11–54%, and b) 75–97%. Inset: Top: the equivalent circuits of complex impedance plots at low RH (11–54%) (a) and high (b) RH (75–97%). Bottom: The proposed humidity sensing mechanism of the CdL based sensor under different RH ranges (bottom). A) Reproduced with permission.[24]Copyright 2019, Elsevier.
