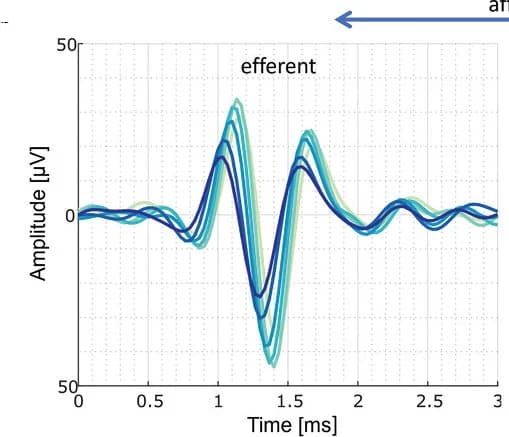

Zoomed-in snippets from the main trace at different times show a motor signal traveling from the ganglion to the leg (efferent). The direction of propagation of the signal can be determined from the observed phase delay between the different channels, with the most proximal channel (ch1) leading during efferent activity.
