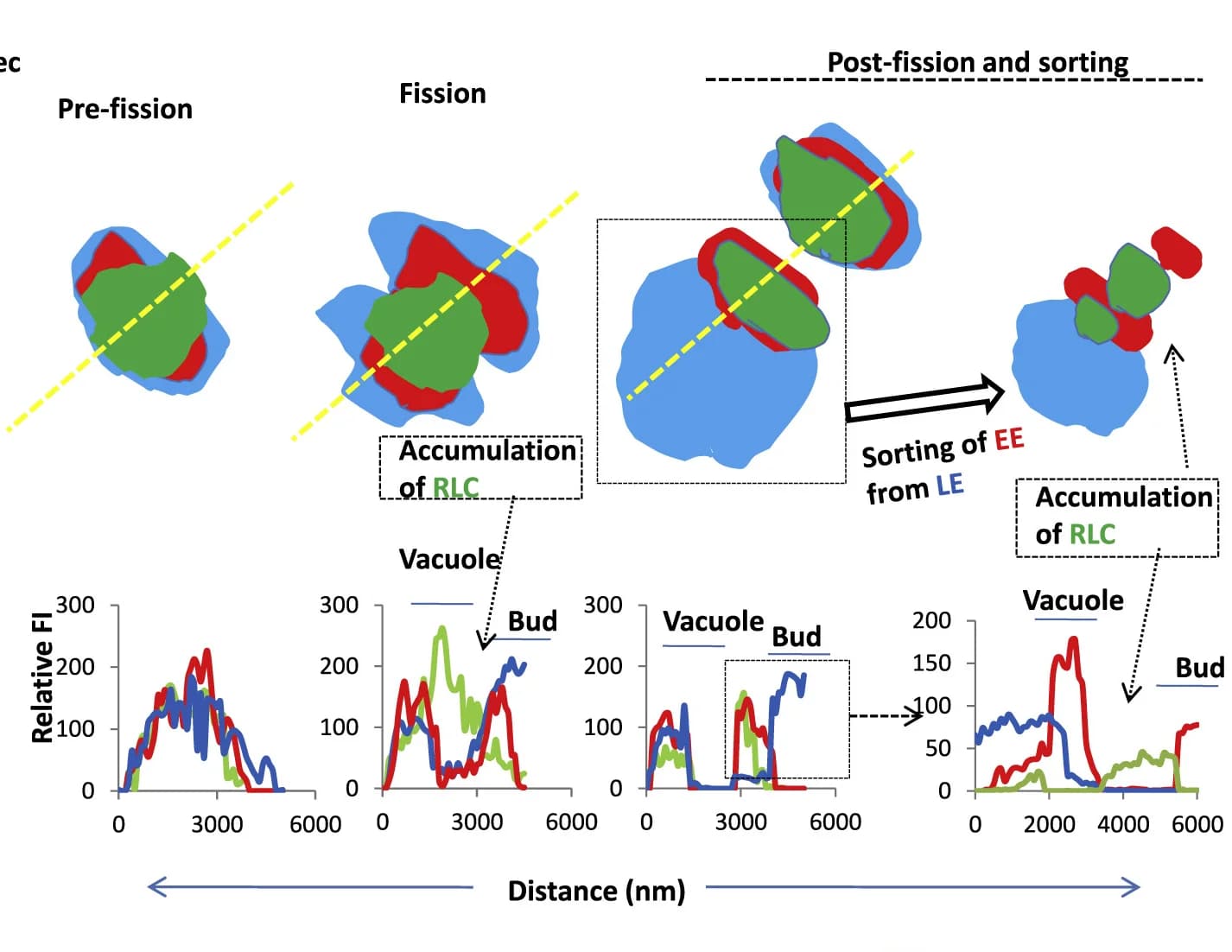

Cartoon depicts the outline of the endosome shown in (E) (upper panels) and in lower panels, the corresponding line-scan analysis of the relative fluorescence intensity (FI) of EEA1-RFP, RLC-GFP, and Rab7-CFP for time points t = 0 s (pre-fission), t = 10 s (fission), and t = 20 and 50 s (post fission and sorting, respectively). Note that RLC accumulates at the fission site.
