Dendrogram from Scientific Research

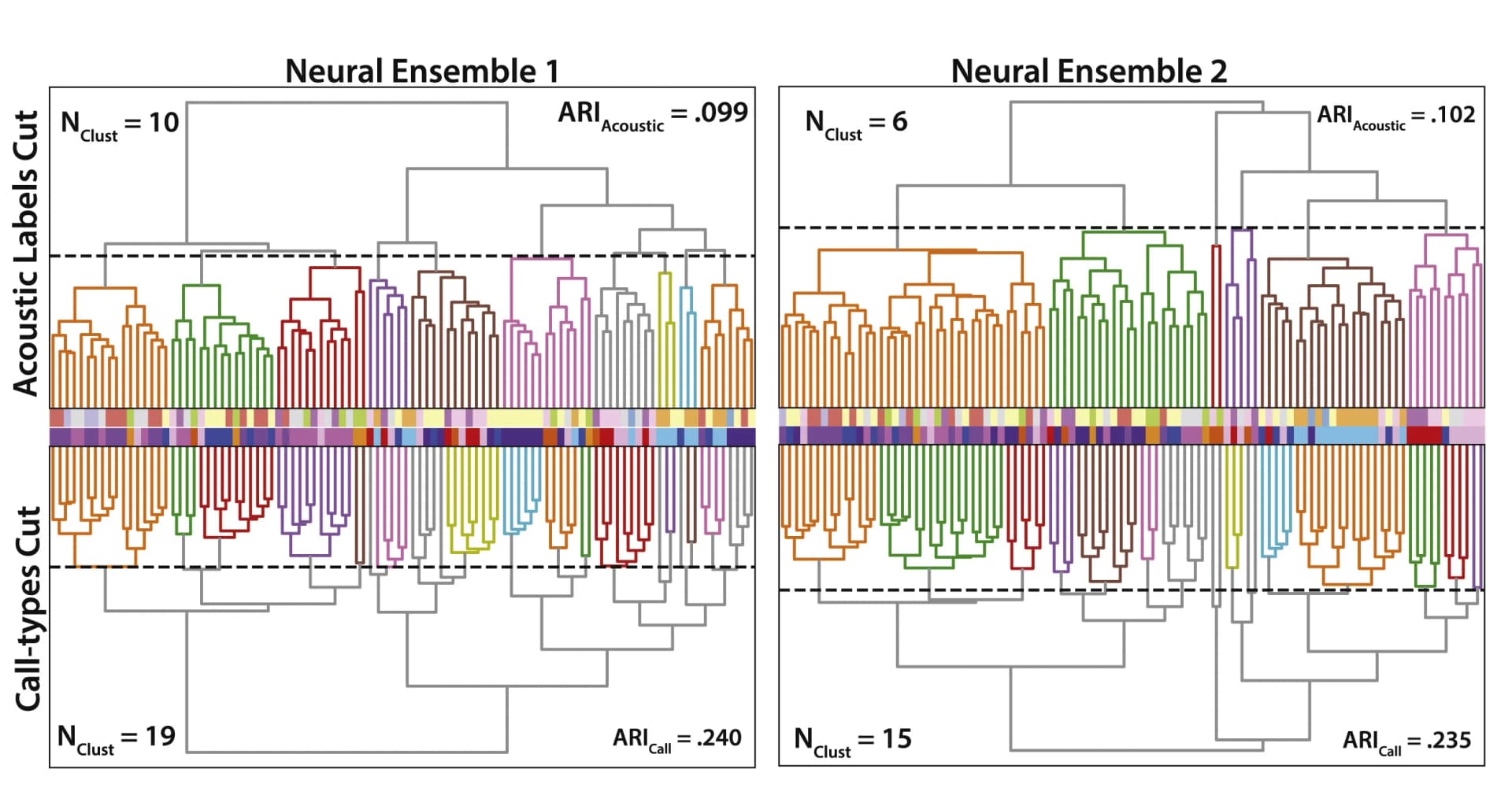

Hierarchical clustering (HAC) for two ensembles (left and right) of 20 neurons. For each neuronal ensemble, the dendrogram from the HAC is cut for maximal adjusted Rand index (ARI) with acoustic labels (upper dendrogram) and ethogram-based call types (lower dendrogram). The tick marks between the dendrograms show the stimuli class label, colored according to the acoustic clusters on the top row and the ethogram-based call types on the bottom row. The colored segments in the dendrogram display the neural clusters.
