Line Plot from Scientific Research

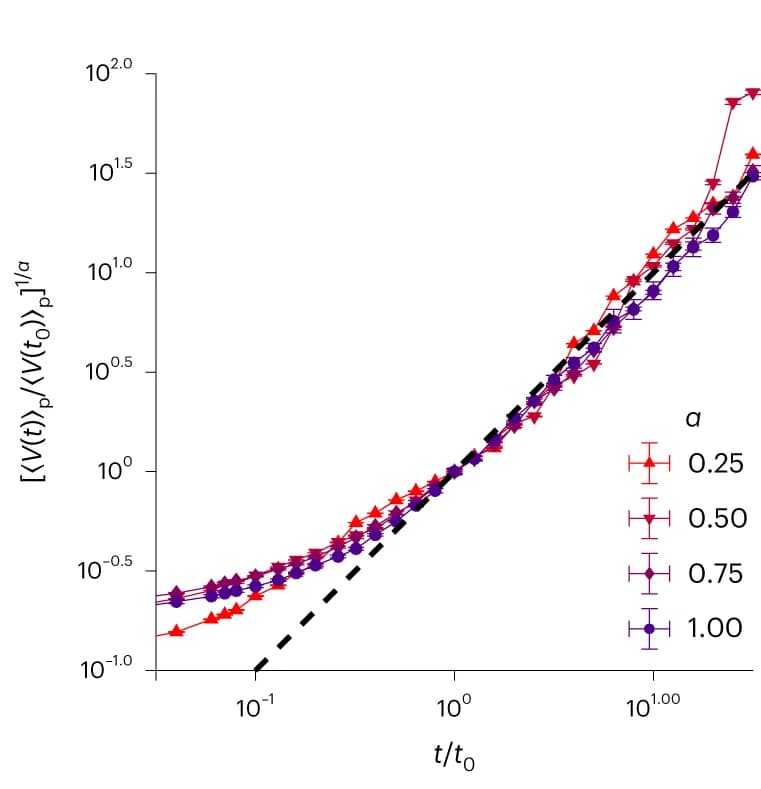

Simulations of 1,000 spheres with initial volumes drawn from a uniform distribution between 1 and 2 were run for 10 5 timesteps at a volume fraction of 5%, for varying subdiffusive exponents α from 0.25 to 1.00. To test the prediction that the mean V(t) p≈ V(t_0) p t t_0 α , we normalized the particle-centric mean by the particle-centric mean at t 0 raised to 1/ α , resulting in a collapse onto a line of slope 1 (dashed line). The error bars reflect the s.e.m. over 20 simulation replicates per condition.
