Line Plot from Scientific Research

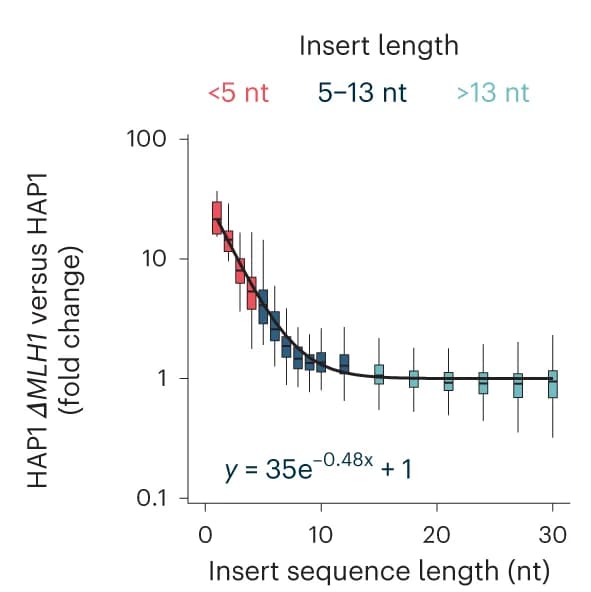

The ratio of relative insertion rates ( Methods ) at the HEK3 locus between HAP1 ∆MLH1 and HAP1 cells ( y axis) for different lengths ( x axis) stratified by colors as in d . Box, median and quartiles; whiskers, least extreme of 1.5 times the interquartile range from the quartile and most extreme values. Line, fit from an exponential model (ratio ≈ a × exp(− b × length) + 1). n = 2 biological replicates.
