Line Plot from Scientific Research

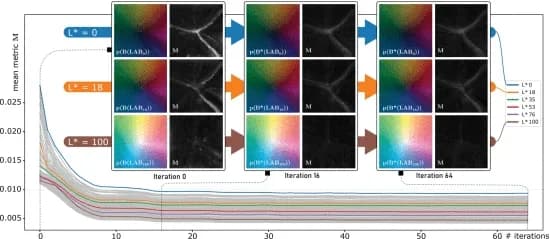

Iterative reduction of the metric M for each L* image during the optimization of the Mimaki profile. Top visualizes exemplary results after 0, 16 and 64 iterations for images with L* = 0, 18 and 100; on the left p(B(LABL*)) the transformed image of the a*-b* plane at constant L* and on the right the corresponding metric M output when comparing to RL*. After a significant reduction of the average metric M in the first 8 iterations the curve flattens and after iteration 16 the metric remains almost constant. The images show that the output of the transformation p(B*(LABL*)) becomes smoother and the structural artifacts are reduced or even removed.
