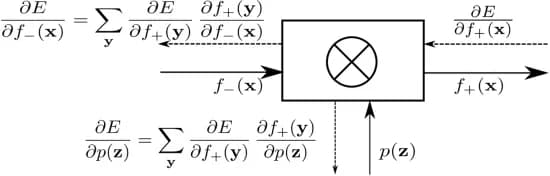

Schematic overview of a single layer in a neural network. It shows forward propagation of f- and p by some operation , and backward propagation of the error . From the chain rule, only the terms are required to obtain the derivatives of the error with respect to the input f- and the parameterized probe p (or kernel) of .
