Heatmap from Scientific Research

Open access visualization of Heatmap, Line Plot, Motif Analysis, CTCF AID2/dZF1, Decreased Peaks
CC-BY
0
Views
0
Likes

Citation

DOI: 10.1186/s13059-022-02843-3

DOI

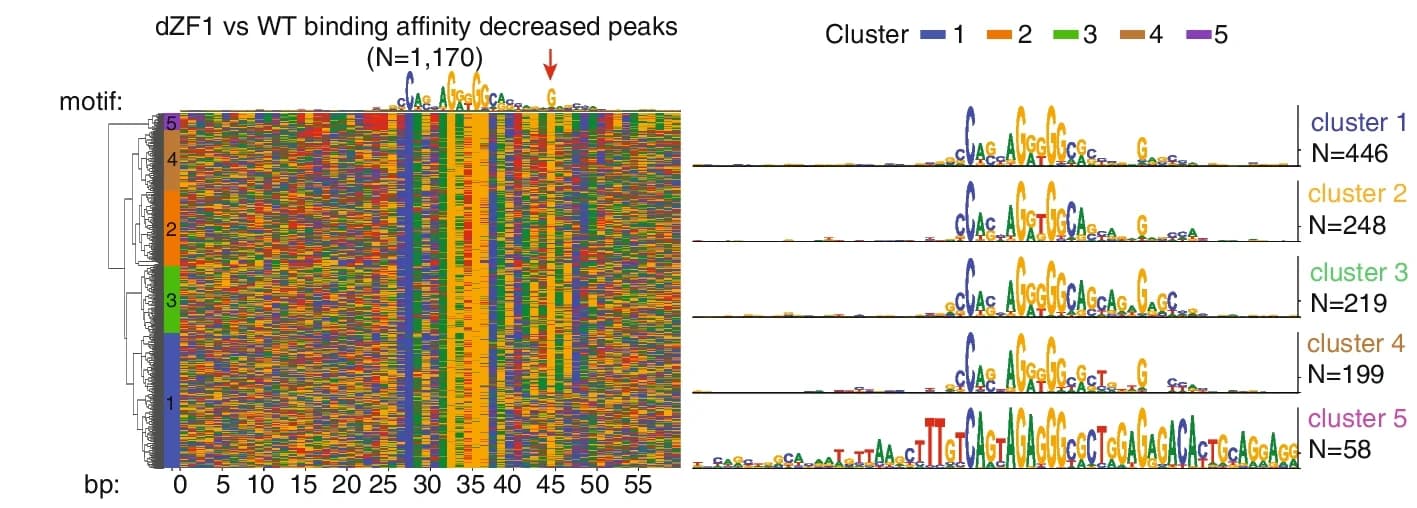

Heatmap of motif analysis of CTCF AID2/dZF1 decreased peaks identifying conserved DNA signatures including a G (red arrow) positioned 4 bp proximal from the 20-bp consensus sequence motif [46].

#Heatmap#Line Plot#Motif Analysis#CTCF AID2/dZF1#Decreased Peaks#DNA Signatures#Consensus Sequence
