Scatter Plot from Scientific Research

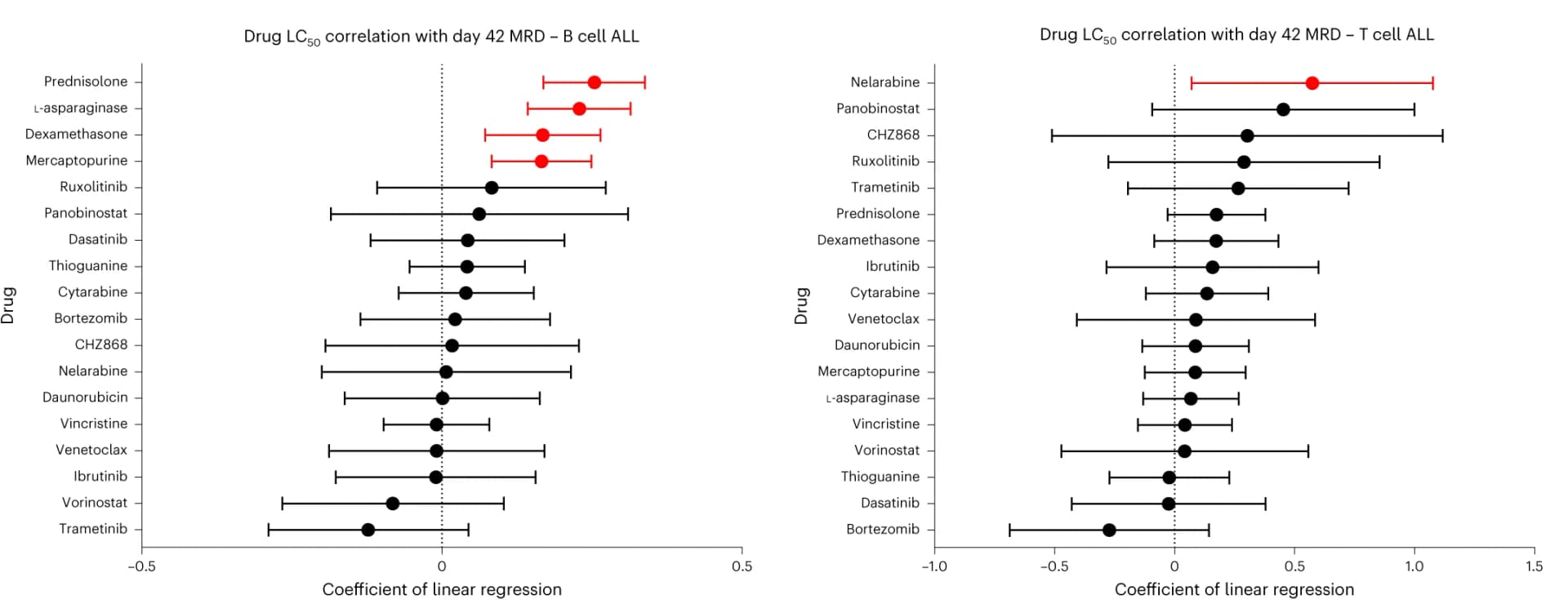

Forest plots depict drug LC 50 correlation with day 42 MRD (B cell ALL, n = 669; T cell ALL, n = 105, representing biologically independent samples). Left, Correlations with B cell ALL. Right, Correlations with T cell ALL. The coefficient of linear regression between each drug and MRD at each time point is shown as solid dots, with the 95% CIs indicated by the horizontal bars. Each unit change in coefficient represents a unit change of MRD (log 10 -transformed), that is, a coefficient of 1.0 represents a tenfold increase in MRD. Significant positive correlations are shown in red, negative correlations are shown in blue and those not reaching statistical significance are shown in black.
