Pie Chart from Scientific Research

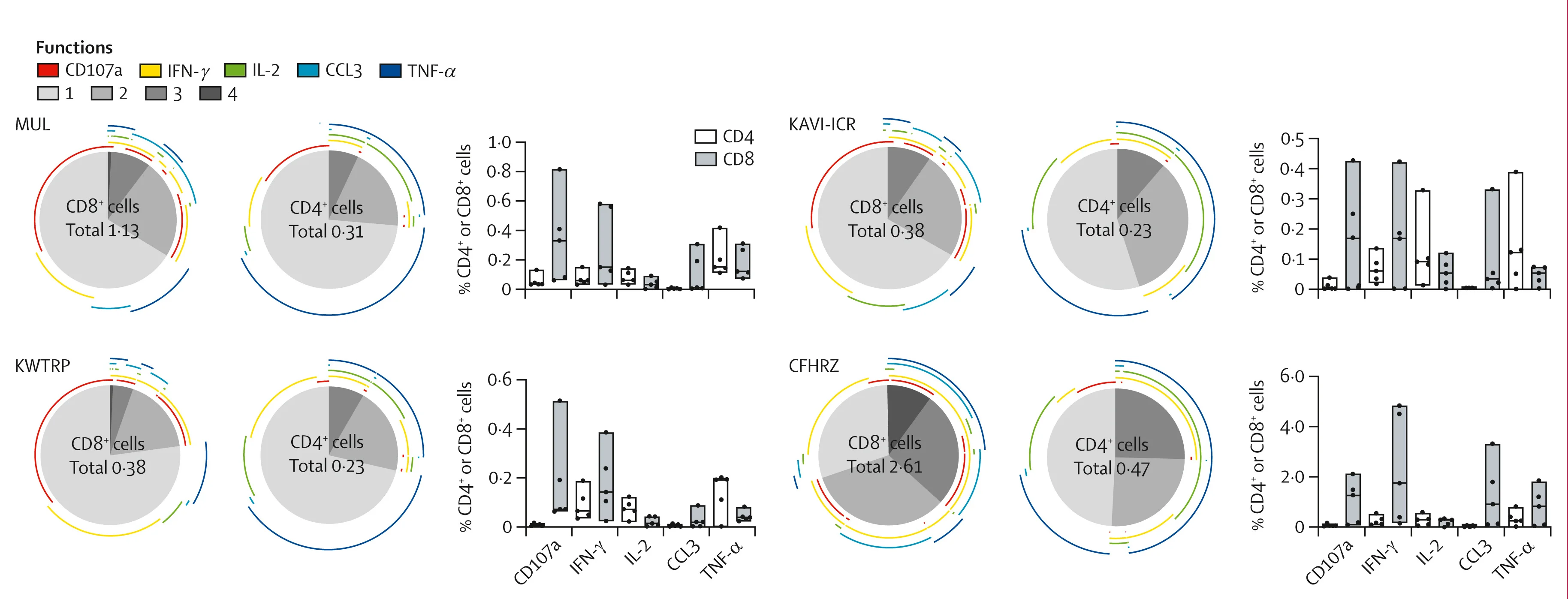

Functionality of HIVconsvX-specific CD8+and CD4+T cells. Five strong responders from each CRC were selected for the polychromatic flow cytometry analysis following stimulation of day 35 peripheral blood mononuclear cells with personalised peptide pools. Average frequencies are depicted as central pie charts illustrating the number of functions of individual cells depicted in shades of grey with functions colour-coded around the periphery (left). Total frequencies for each function are displayed as median (range) boxes indicating individual values (right). For gating, refer to the appendix (p 12).
