Scatter Plot from Scientific Research

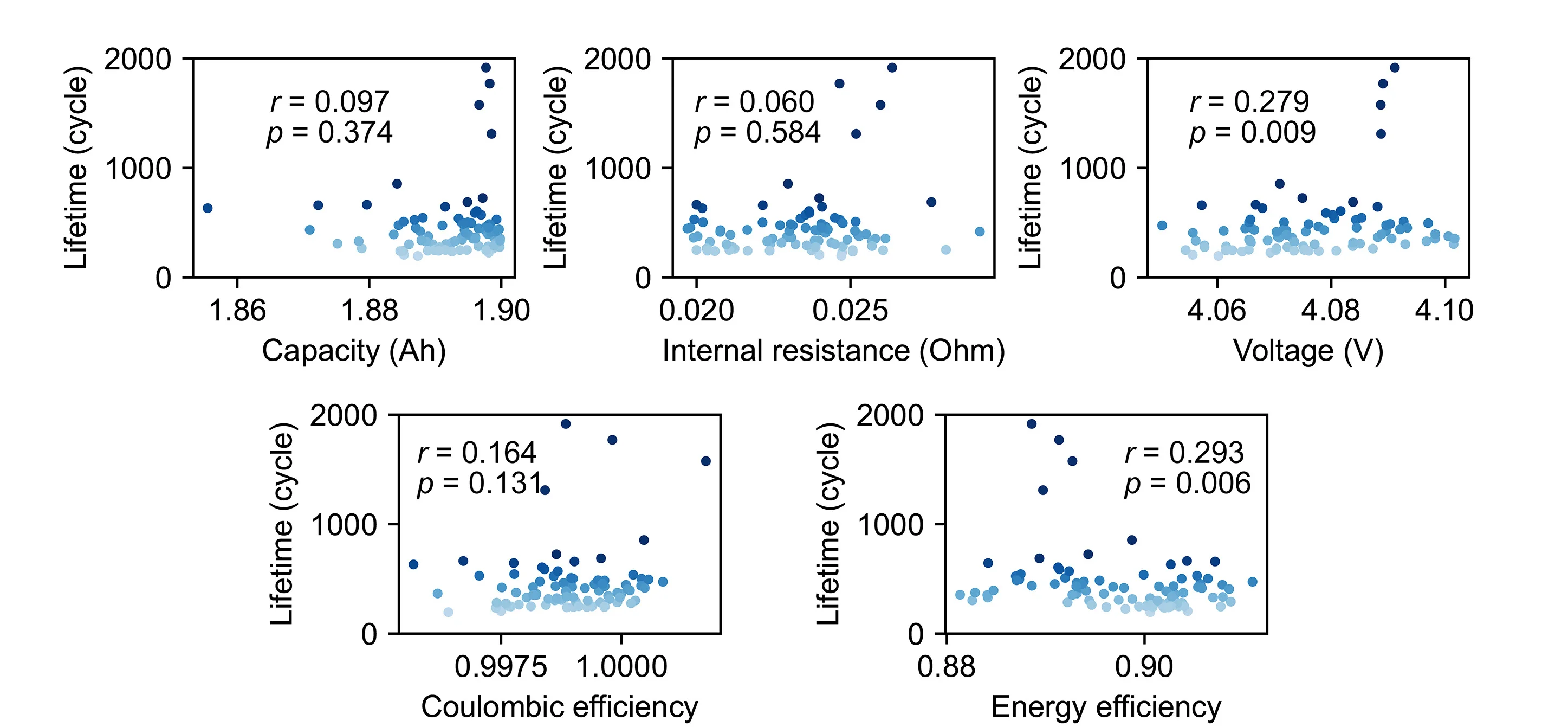

Correlation analysis between five explicit features and Cycle50. The figure consists of five subplots, each illustrating the relationship between one of the explicit features (shown on the x axis) and battery lifespan (shown on the y axis) for 86 retired batteries. The individual data points represent the corresponding values for each battery. The correlation coefficient r and p value are indicated in each subplot, showing generally weak correlations between the features and battery lifespan.
