Line Plot from Scientific Research

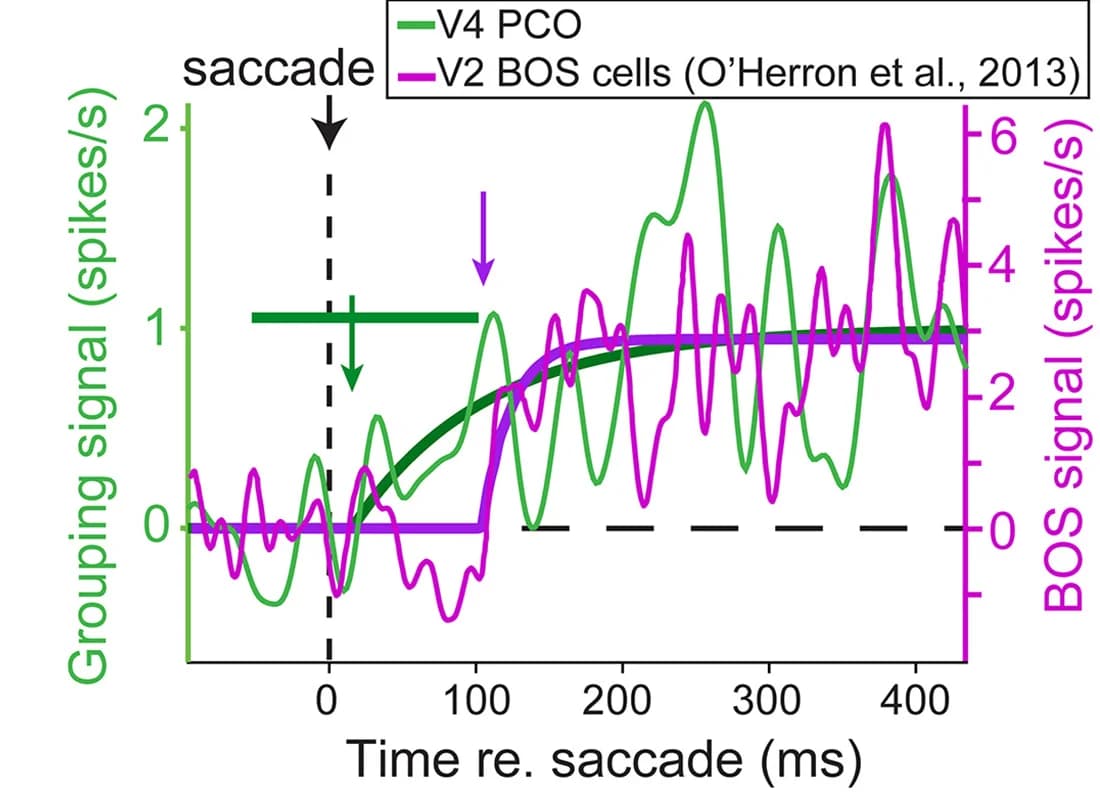

The grouping signal (green) is the difference between the functions in (E). The BOS signal in V2 for a similar experiment is replotted from O’Herron and von der Heydt (their Figure 7, top,n= 26 units; the BOS signal and the regression fit were scanned from the original figure and are replotted here in a different color).18Thick lines: two-phase regression fits, and latency is estimated as the point where these fits deviate from 0 (arrows). Horizontal green line: 95% CI for the grouping signal latency.
