Line Plot from Scientific Research

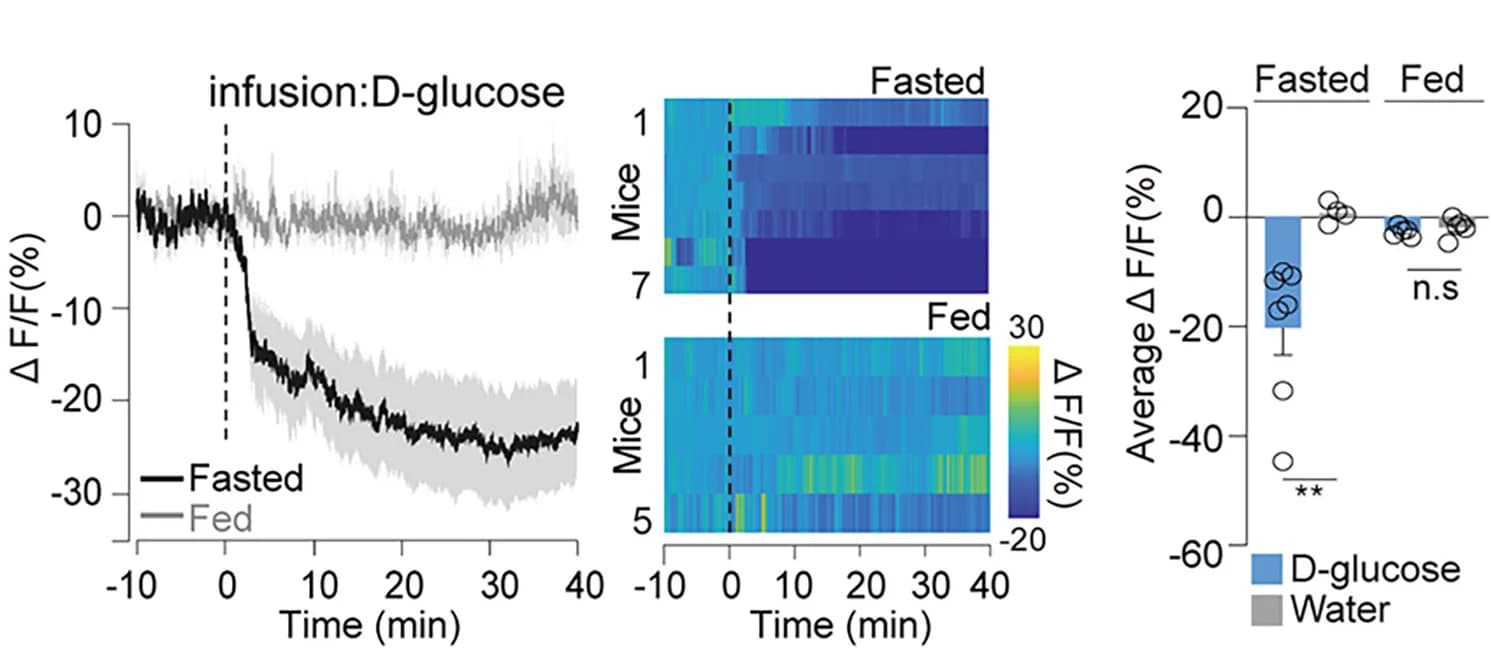

Peri-stimulus time histograms (PSTH) plots (left), heatmaps (middle), and quantifications (right) of F/F(%) of GCaMP6s signals in CRFPVNneurons (CRFPVN:GCaMP6signals) aligned to the onset of ID infusion of D-glucose. Dashed lines indicate infusion onset. Bold lines and shaded areas denote the mean and SEM, respectively. Light circles: individual mice. F/F(%) = (Fduring infusion Fbaseline)/(Fbaseline) 100.
