Heatmap from Scientific Research

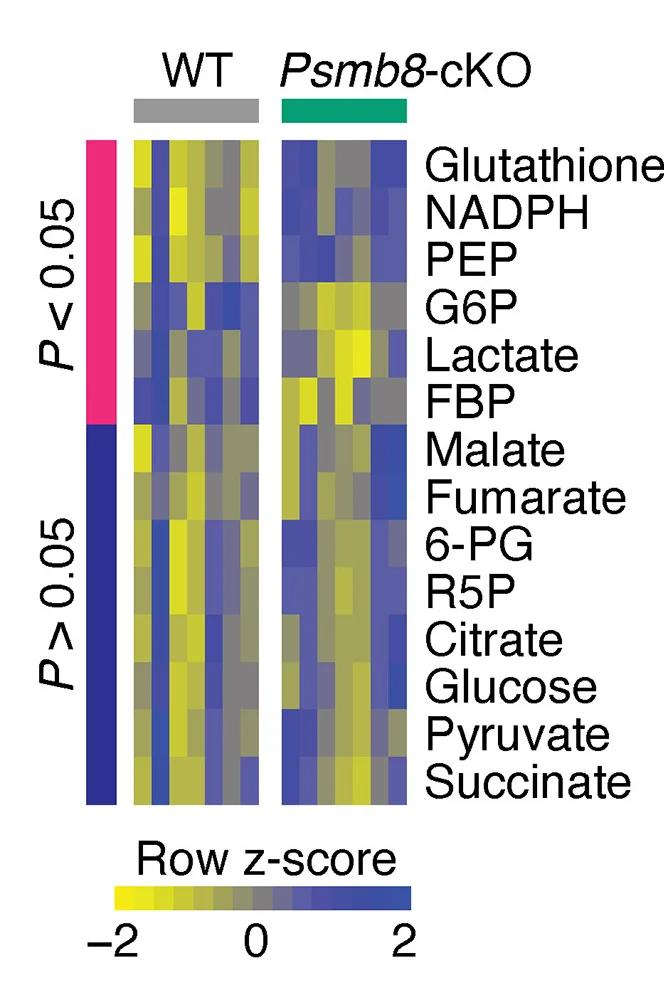

Quantification (J) of glucose, glucose-6-phosphate (G6P), fructose-1/2,6-bisphosphate (FBP), phosphoenolpyruvate (PEP), lactate, citrate, pyruvate, succinate, malate, fumarate, ribose-5-phosphate (R5P), 6-phosphogluconolactone (6-PG), NADPH, and GSH using MALDI mass spectrometry in WT andPsmb8-cKO (n= 7) mice at late EAE stage (30 days p.i.). The gray matter is indicated in white and the ventral horns in green, which were used for quantification. The rowZscores are displayed in the heatmap, and the rows are sorted by significance. Unpaired t tests were used for statistical comparison. Scale bar, 500 μm.
