Line Plot from Scientific Research

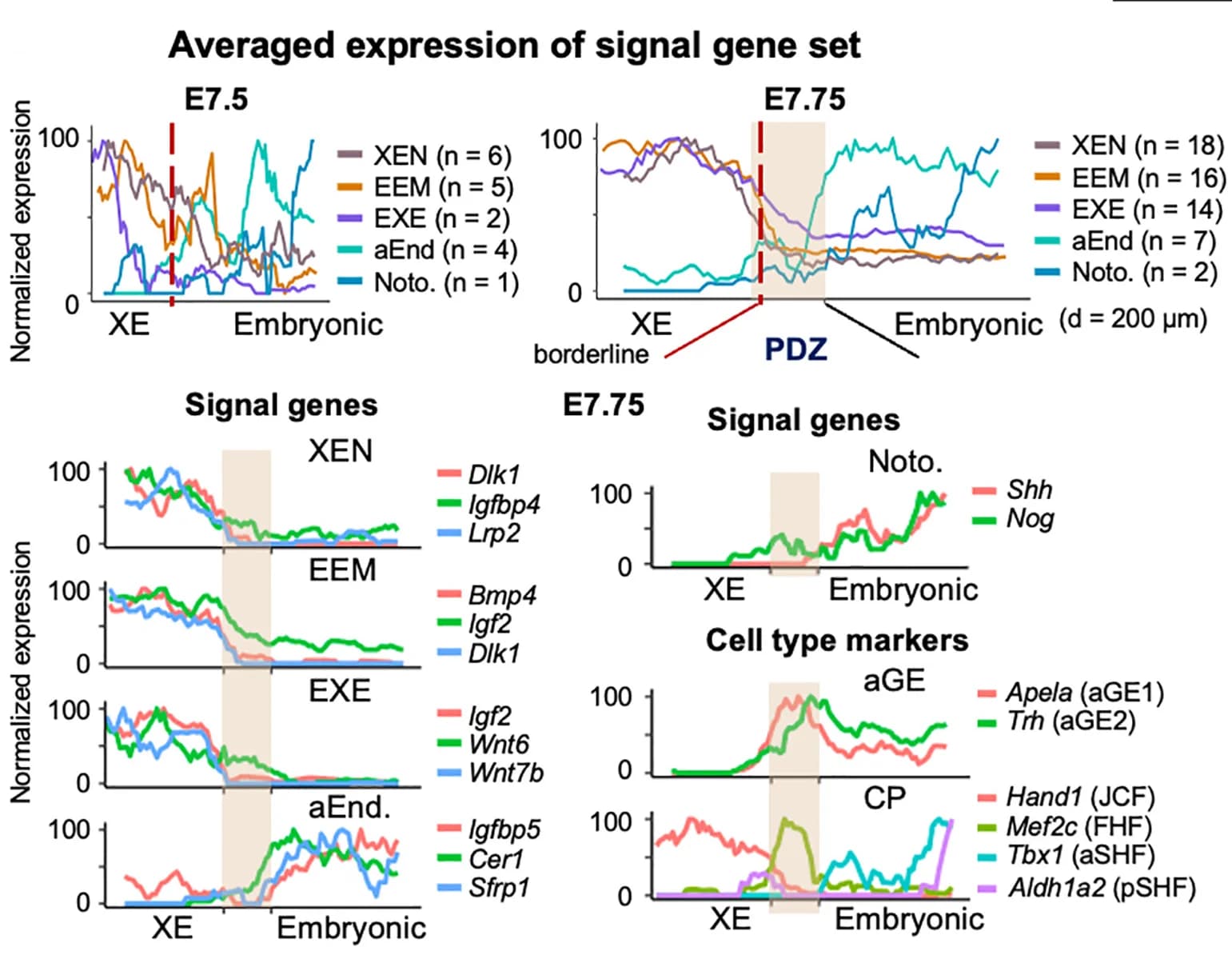

PDZ at the E7.75 anterior embryonic-extraembryonic interface. (Upper) Expression profiles of signal genes expressed in each signal center of (E); cells within ±100 μm of the midline at E7.5 and E7.75 were used (seeSTAR Methods); expression levels were normalized by the maximum value of each curve. The beige shaded area denotes the PDZ, and the red dashed line indicates the borderline. (Lower) Normalized expression profiles of specific signal genes (left) and aGE/CP markers (right) at E7.75.
