Box Plot from Scientific Research

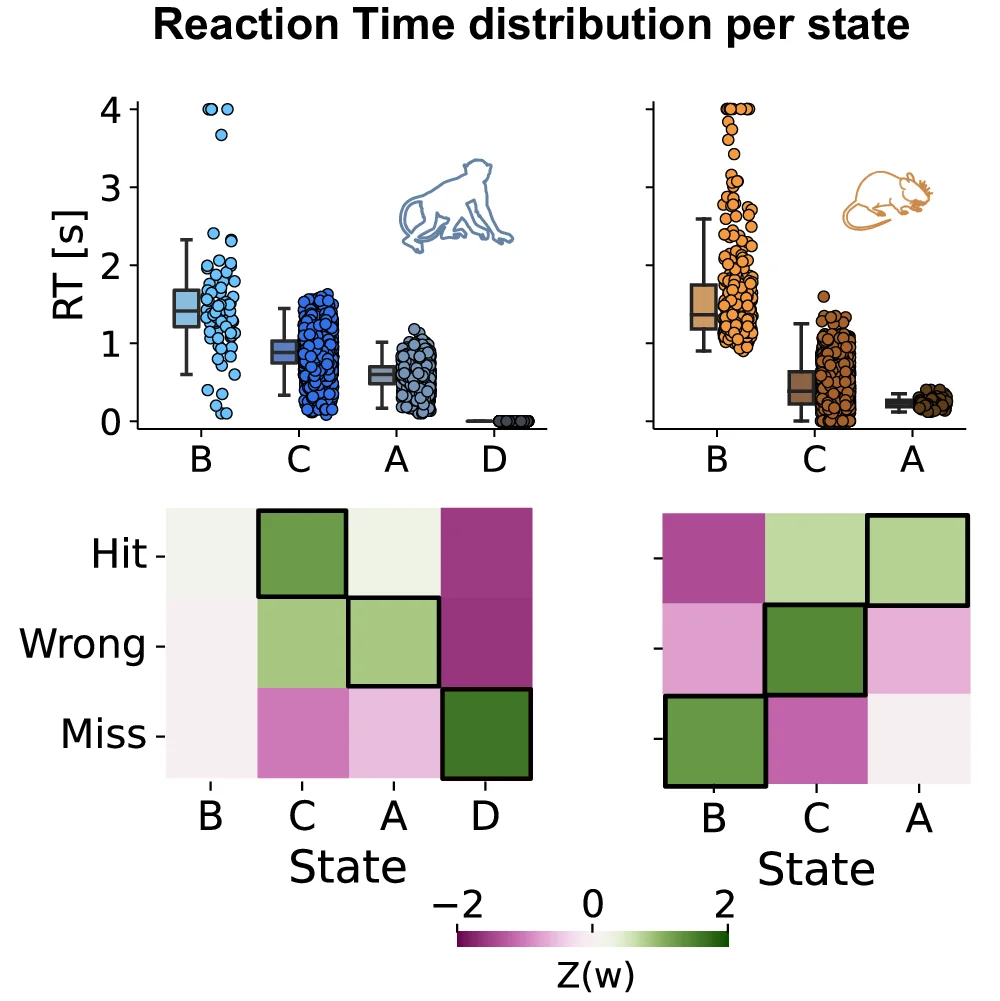

(Top) Splitting the RTs over internal states shows large diversity for both macaques (left) and mice (right), from fast reaction-states to extremely slow ones. Box plots reflect the median RT and the 25th, 75th percentiles, with whiskers showing 10th, 90th percentiles; individual dots reflect trials ( n mac [90, 1930], n mou [110, 1160]). (Bottom) Correlations of state probabilities with the three task outcomes (hit, wrong, miss), for macaques (left) and mice (right). Black boxes indicate the states most strongly associated with a certain task outcome.
