Scatter Plot from Scientific Research

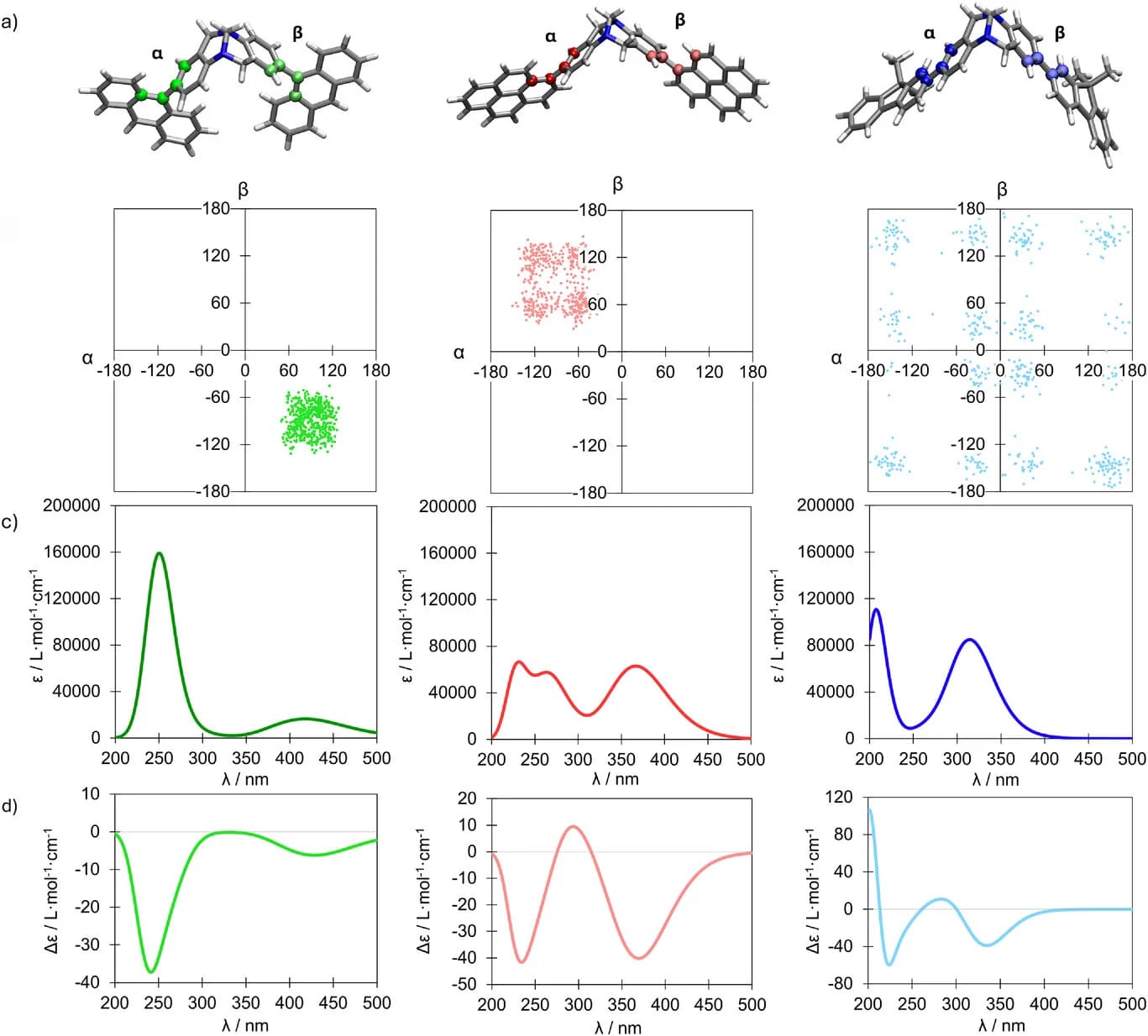

Representation of the dihedral couple (α;β) of (RR)-1a (left), (RR)-2a (middle), and (RR)-3a (right) along the 20 ns MD simulation, where each point represents a snapshot of the simulation. For 1a,b-2a,b, because of steric hindrance, only the half-rotation is possible and the dihedral angles extend over a 180 range (either [0;180] or [-180;0]). Note that for 3a,b, since the complete rotation of the fluorene moieties is possible, the dihedral angles range from -180 to +180.
