Stacked Bar Plot from Scientific Research

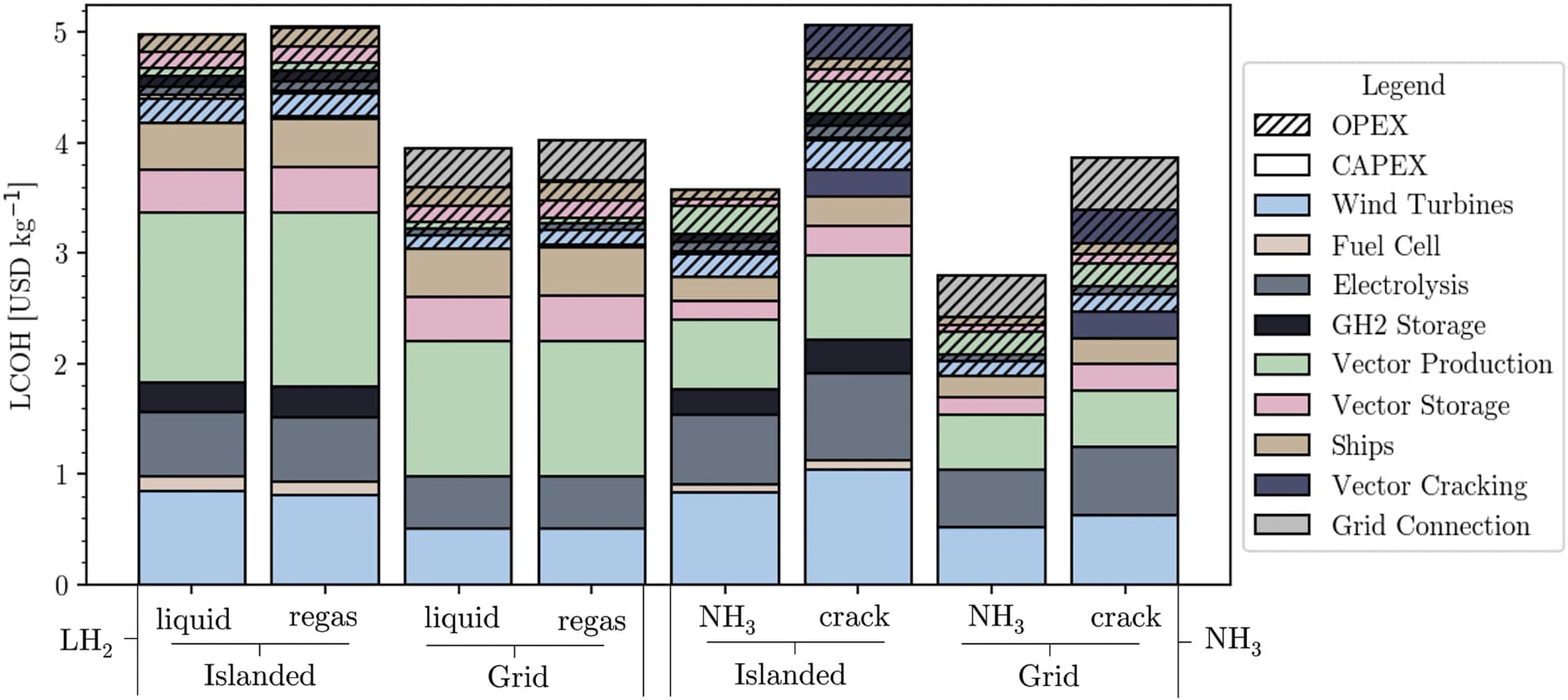

All figures are in USD kg-1(H2); when ammonia is landed in its uncracked form, the mass of delivered ammonia is scaled by the ratio of ammonia to hydrogens lower heating values, to give comparable cost units. The costs associated with vector cracking refers to the direct costs to install and operate the facility, not the indirect costs of increased scale upstream due to lost product. Costs that contribute less than 0.05 $/kg are not shown (hence compression costs are not illustrated on this figure).

DOI
