Bar Plot from Scientific Research

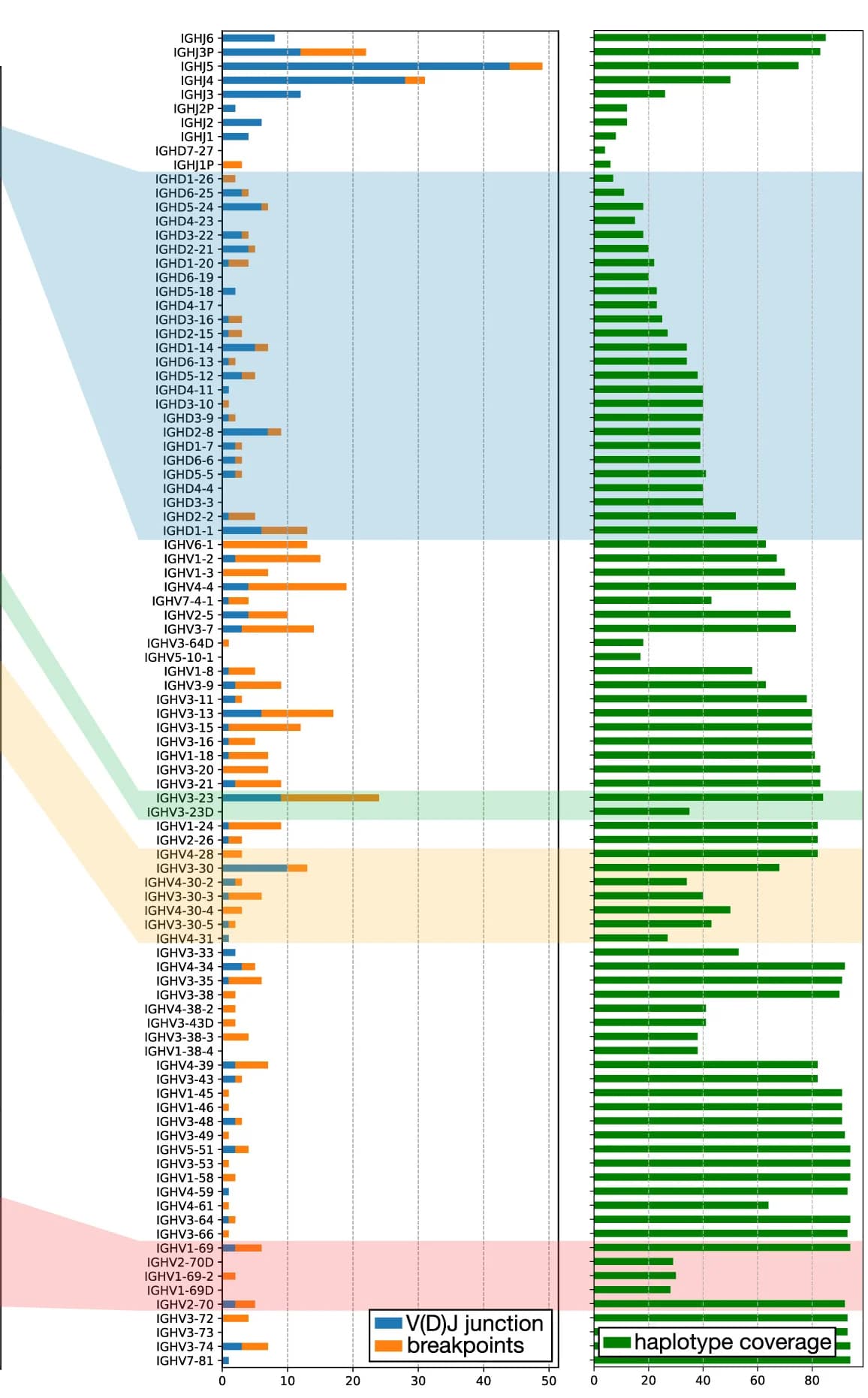

(Left) The accumulated V(D)J junctions and breakpoints of the 94 HPRC haplotypes. How the IGH gene segments are related to the V(D)J junctions and breakpoints, including the disjoint, overlapping, and duplication cases, is depicted inFigure S10. (Right) The occurrence of each IGH gene segment in the assemblies of the 94 haplotypes, counted as 1 per haplotype if covered. The colored strips across (C) and (D) show the relative position of the repetitive regions in the dot plot and bar plot.
