Scatter Plot from Scientific Research

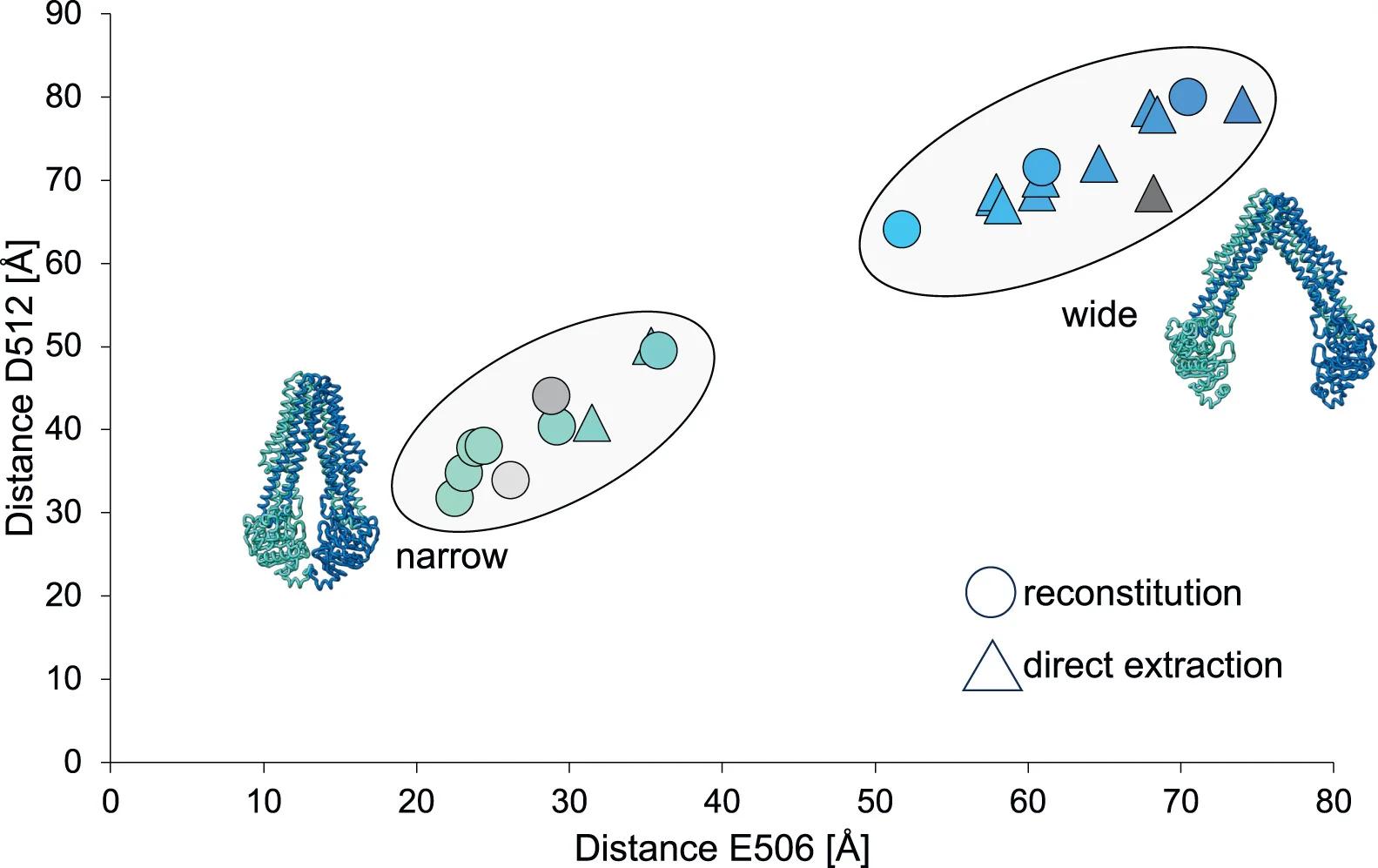

Distance measurements in the NBDs between MsbA chains A and B at residues D512 and E506 are plotted against each other. Structures of MsbA in cartoon representation exemplify narrow and wide conformations. Triangles indicate direct protein extractions, and circles indicate reconstitutions. Previously published structures are displayed: light gray, MsbA in nanodisc (5TV4); gray, MsbA in peptidisc (6UZ2); and dark gray, MsbA in DDM (8DMO) (cf.Table S5).
