Box Plot from Scientific Research

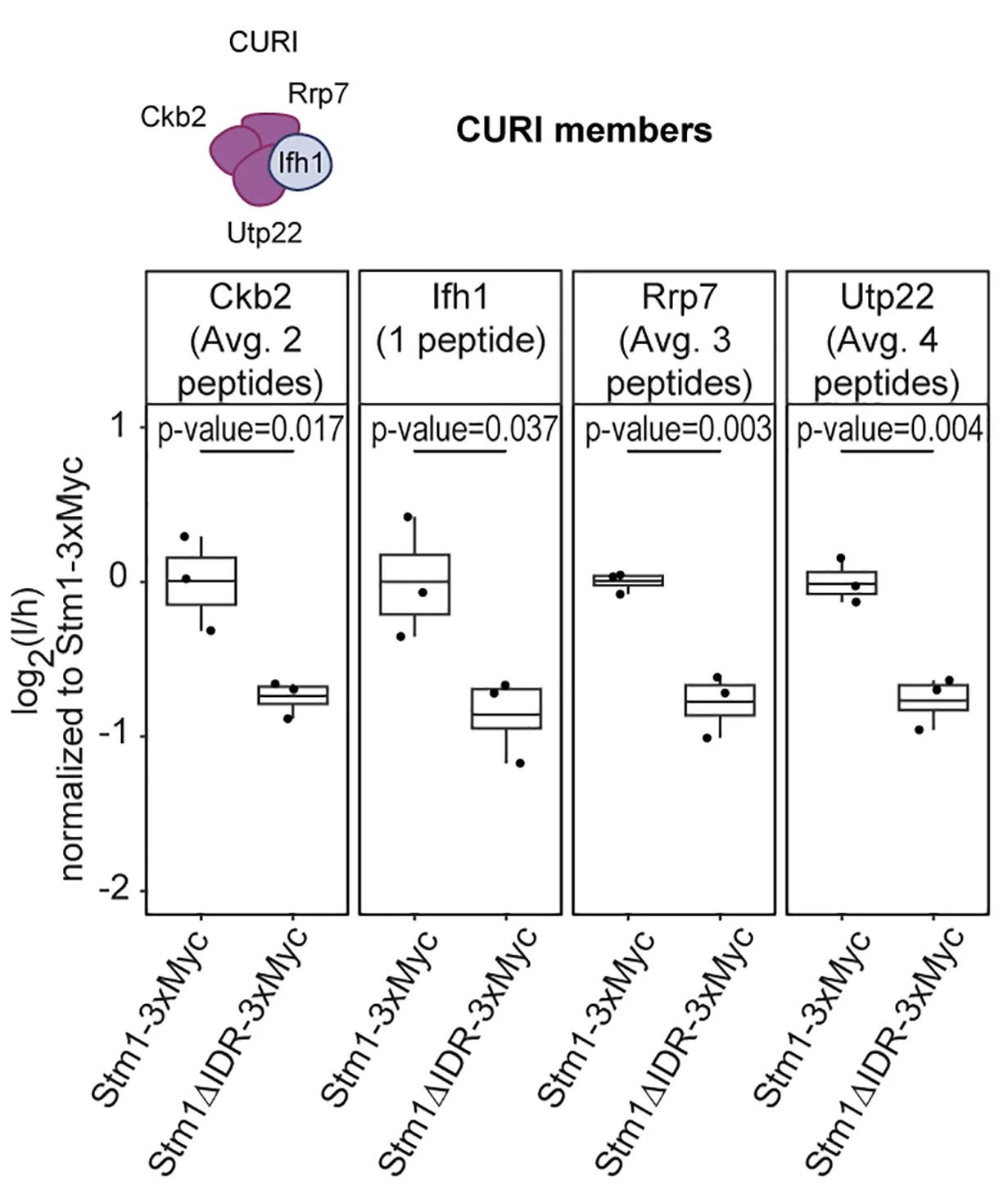

Targeted PRM measurement of Ifh1 and CURI complex members co-precipitating with Stm1-3xMyc or Stm1ΔIDR-3xMyc, reporting the log2FC enrichment for the indicated peptides (Figures 5C and S4I). Data values are shown as log2ratio of light (endogenous peptide) to heavy (stable heavy isotope-labeled peptide) (l/h), normalized to Stm1-3xMyc data. Each dot is a technical replicate (n =3), with the box plot boundaries indicating the quantiles Q1 (25%) and Q3 (75%). The average value is denoted by a line (n =3).
