Box Plot from Scientific Research

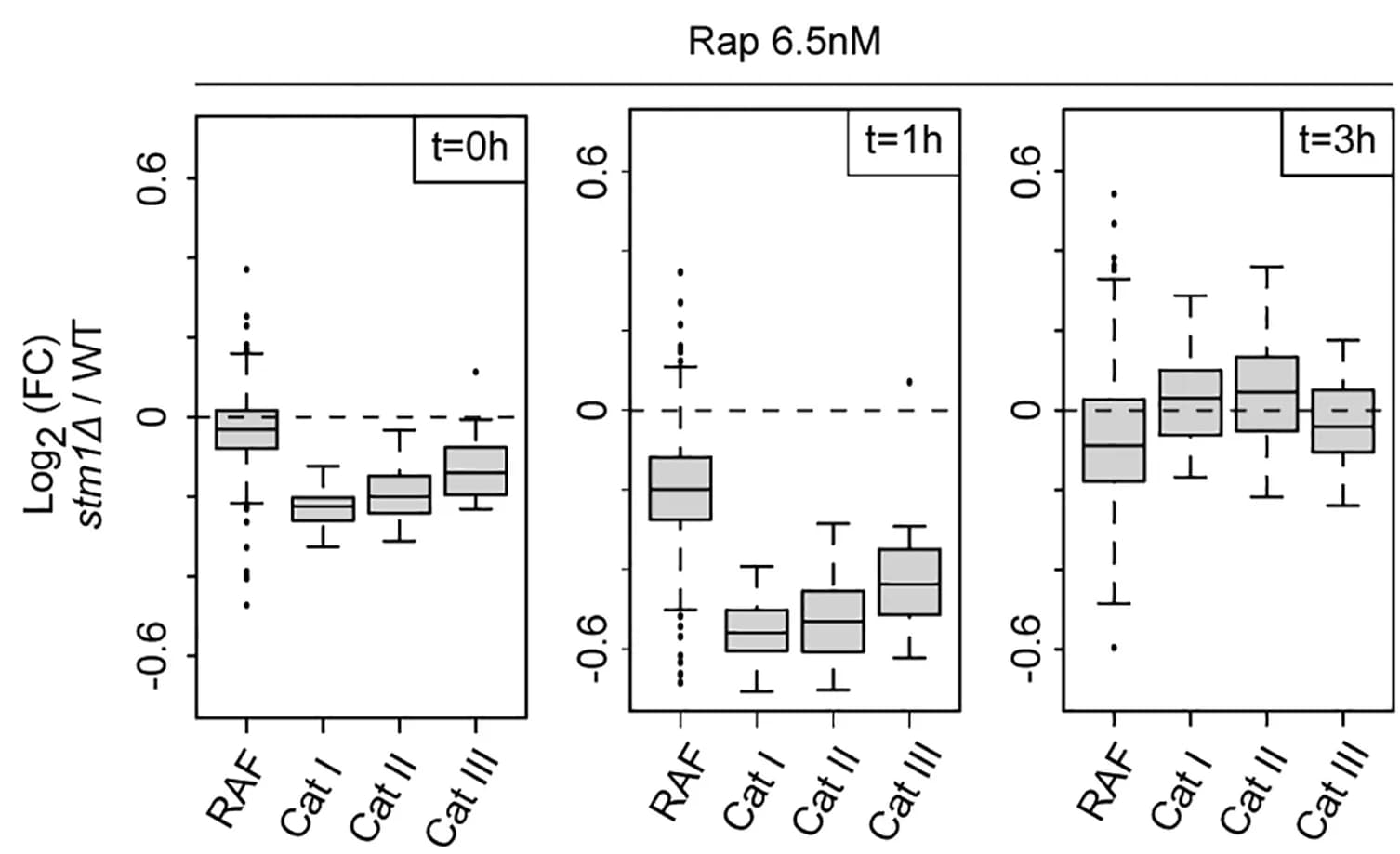

Boxplots comparing differential RNA Pol II Ser5 occupancy of ribosome assembly factors (RAFs [n= 566]), ribosomal protein genes (RP [n= 138]) categories number 1 (Cat I), number 2 (Cat II), and number 3 (Cat III) in WT and stm1strains. Data are displayed as the log2normalized fold change of RNA Pol II Ser5 occupancy instm1versus WT cells, treated or not (t = 0, left) with 6.5 nM rapamycin for 1 h (t = 1, center) or 3 h (t = 3, right). Gene categories according to literature. An independent replicate is shown inFigure S3J.
