Scatter Plot from Scientific Research

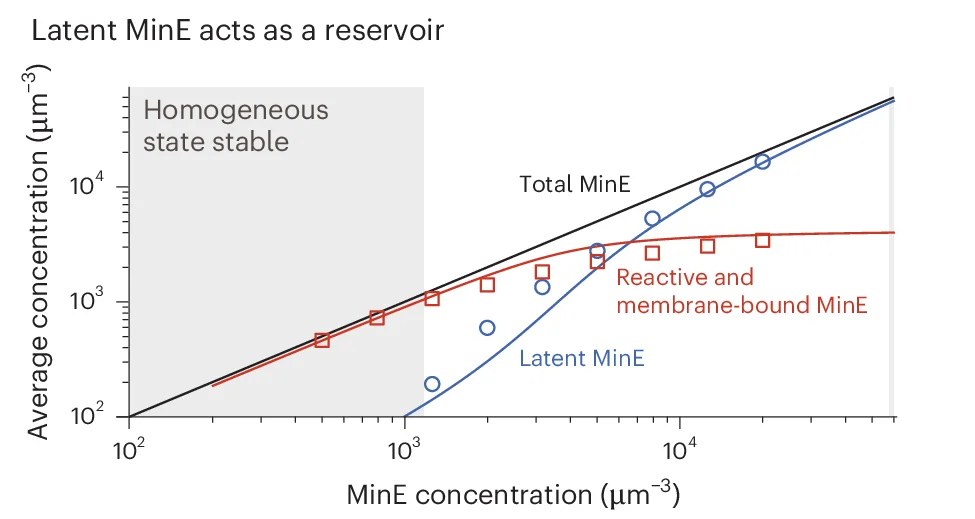

The reservoir effect of the latent MinE state. The concentrations of latent MinE (blue) and MinE in the reactive and MinDE states (red) are compared to the total MinE concentration (black). The concentrations in the homogeneous steady state analysed in a are depicted as lines. The concentrations in the numerical pattern simulations (cf. c and d) averaged over the whole simulation domain and 1,000 s of simulated time are shown as symbols. The grey-shaded region denotes the concentrations at which the homogeneous steady state is stable. The total MinD concentration was fixed to 6,000 µm -3.
