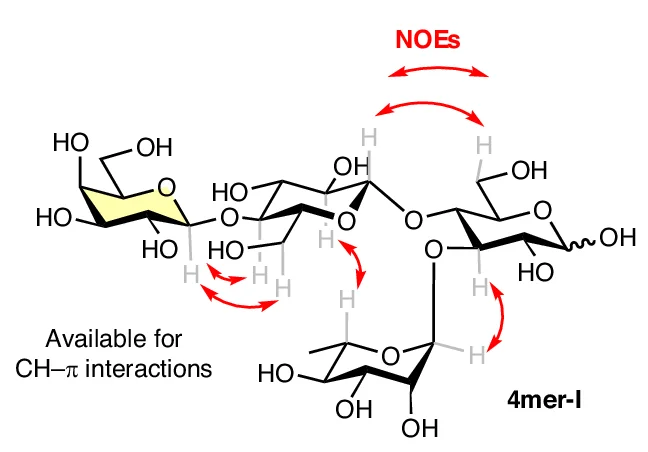

Experimentally observed nuclear Overhauser effects (NOEs) extracted from NOESY NMR experiments for 4mer-I (red arrows) confirming the rigid conformation of the turn motif and the orientation of the Gal arm with the alpha-face pointing towards the hydroxyl group of Rha C-4.
