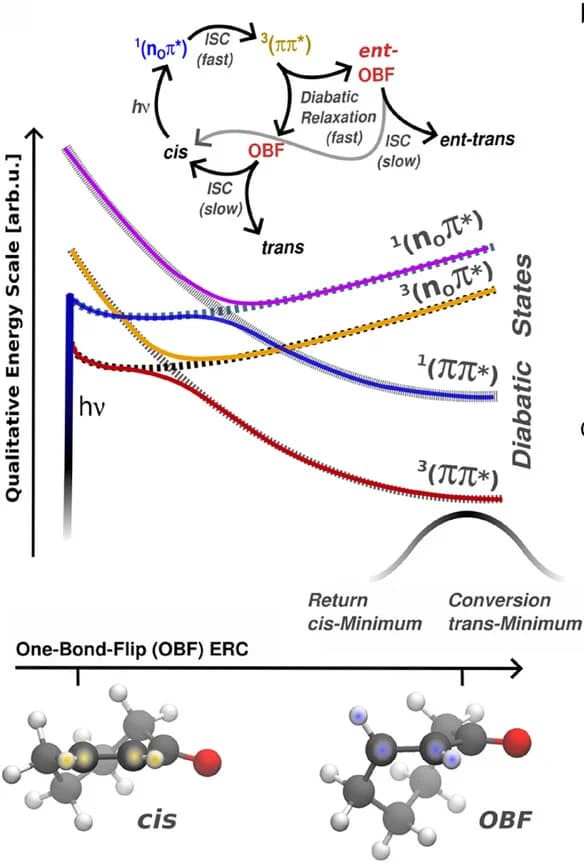

Sketch of the excited states T1, S1, T2, and S2(solid-colored lines) and respective diabatic state character (dashed lines) along the ERC of OBF motion toward the dominant enantiomer in OBF-configuration. The scheme (top) illustrates the overall photoreaction cycle, which produces either thetransphotoproduct or its enantiomer (ent-trans). Colored dots in the molecular structure highlight the H-C=C-H dihedral angle used to characterize the OBF motion.
