Line Plot from Scientific Research

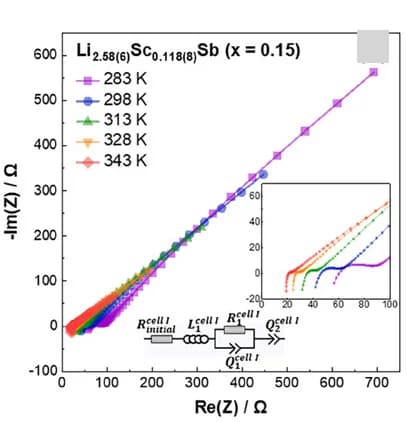

Nyquist plot for different temperatures ranging from 283 to 343 K measured under ion-blocking conditions using stainless steel electrodes sandwiching a Li2.55Sc0.15Sb pellet (cell setup I), with the inset showing a magnified view of the high-frequency region; also shown is the equivalent circuit model used to fit the impedance data for determining the temperature dependence of the ionic conductivity. Amongst, the colored dots correspond to the measurements at each temperature ramp in the Nyquist plot.
