Line Plot from Scientific Research

Open access visualization of Line Plot, Density Plot, Ridge Plot, IR Absorbance Spectrum, Zeolites
CC-BY
2
Views
0
Likes
DOI

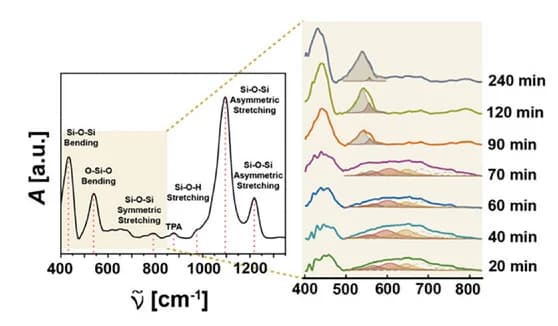

The IR absorbance spectrum of zeolites with signal contributions from loosely connected 5-membered ring structures (yellow-filled peak centered at wavenumber 650 cm-1) to condensed units of 10T and 22T structures (red-filled peak centered at 600 cm-1), 36T MFI precursors (brown-filled peak centered at 560 cm-1), and fully grown MFI structures (grey-filled peak centered at 540 cm-1).
