Volcano Plot from Scientific Research

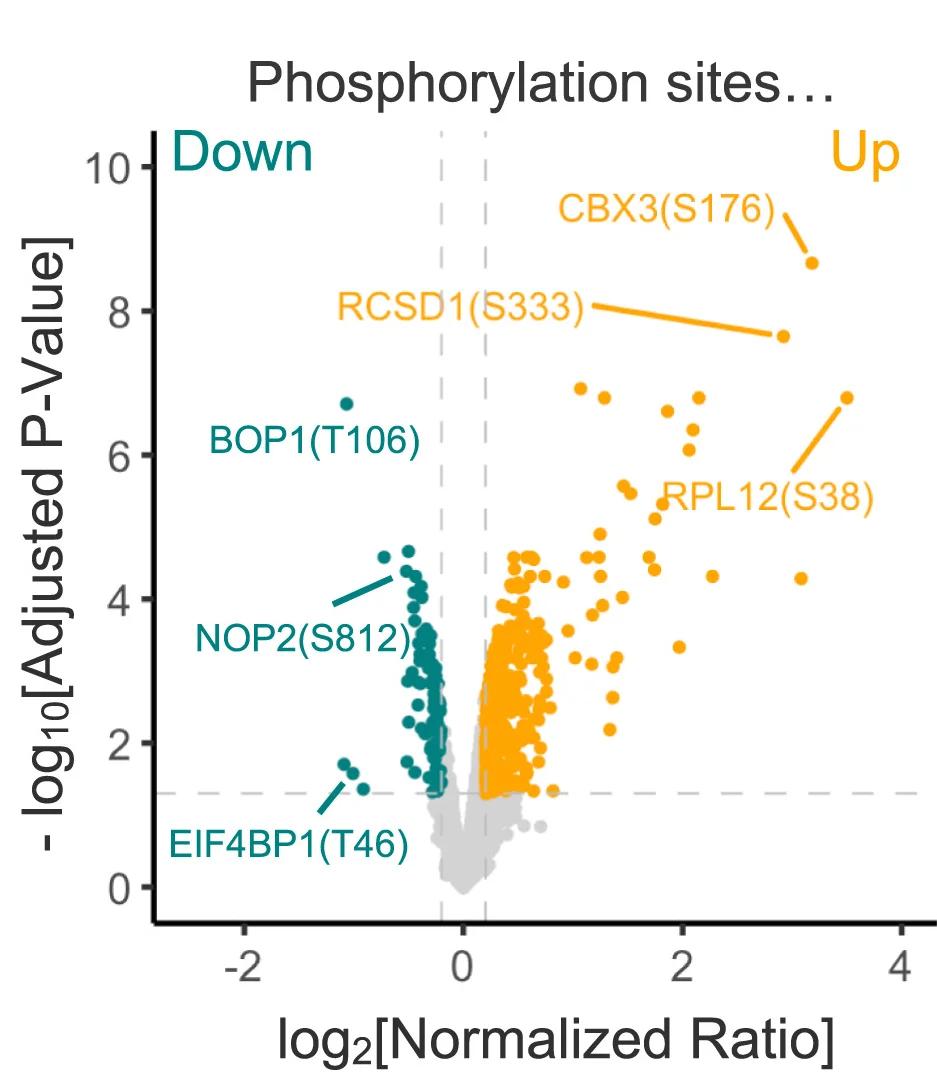

Evaluation of differential peptide phosphorylation after 4 h of MOLT-4 exposure to 50 nM of KI-CDK9d-32. The log2[normalized ratio] is the ratio of DMSO-normalized peptide to protein abundance in MOLT-4 cells treated with 50 nM KI-CDK9d-32 for 4 h. Analysis utilized four biological replicates and the Limma package for differential analysis post-median normalization.
