Scatter Plot from Scientific Research

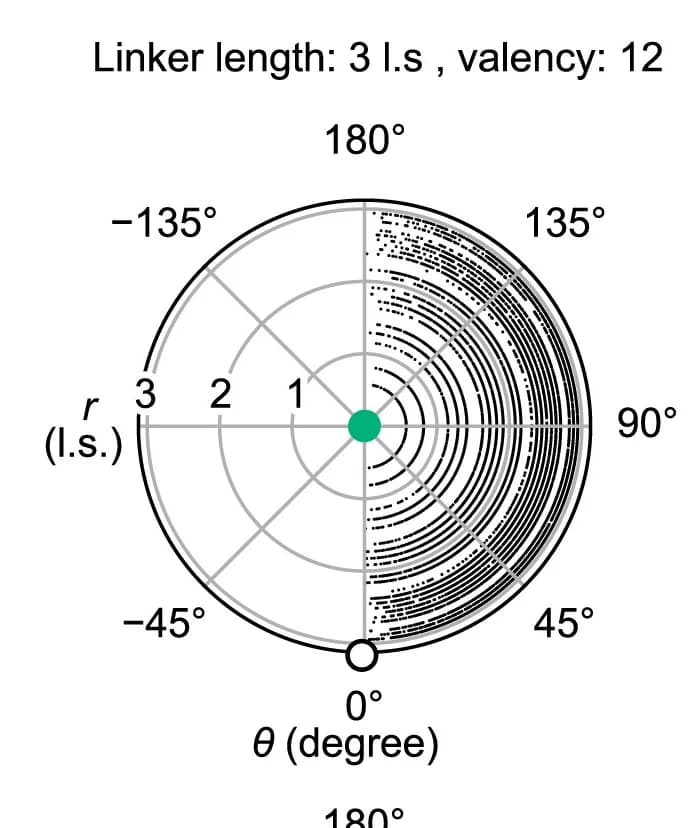

Spatial distribution of the CaMKII hub beads (black points on the left) when the tethering binding beads were centered (green points); two standard cases are shown (D) and (E). Angles of the linker versus the binding bead-condensate center axis (θi) were obtained as well as the distances between each CaMKII hub and binding bead (ri) (C); scatterplots showing the polar coordinates (top rows in D and E). The polar (middle rows), angular (bottom rows, left), and radial distributions (bottom rows, right) are also shown. Levels in the polar distribution were normalized by the segmented volumes and those in the angular distribution were normalized by the segmented area.
