Line Plot from Scientific Research

Open access visualization of Line Plot, Tensile Loading, Stress-Strain Curves, Ti-Al-Cr Alloys, Ti-Nb Alloys
CC-BY
15
Views
0
Likes

Citation

DOI: 10.1038/s41586-024-08583-7

DOI

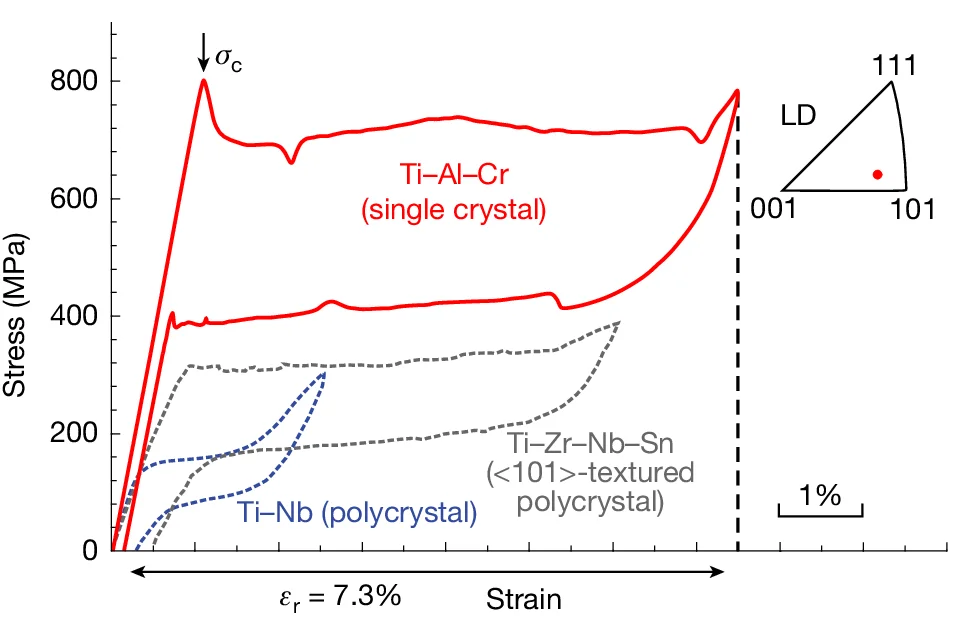

Tensile loading–unloading engineering stress–strain curves of Ti–Al–Cr, Ti–Nb and Ti–Zr–Nb–Sn alloys at room temperature 15 , 16 . The upper inset shows the orientation of the Ti–Al–Cr single crystal along the tensile loading direction (LD) in the inverse pole figure.

#Line Plot#Tensile Loading#Stress-Strain Curves#Ti-Al-Cr Alloys#Ti-Nb Alloys#Ti-Zr-Nb-Sn Alloys#Room Temperature#Single Crystal#Inverse Pole Figure
