Line Plot from Scientific Research

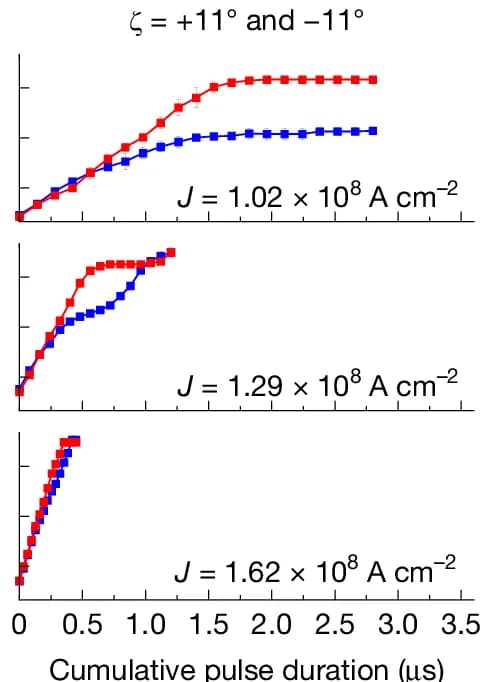

Relative DW position, as defined in a , as a function of the cumulative pulse duration for both DW types moving along + x with +11 (left half) and -11 (right half) ( d ) twisted devices. Red represents ⊗ and blue represents ⊗ DWs, respectively. Circle, diamond and square symbols correspond to =0, -11 and +11 twisted devices, respectively, as indicated. Each point corresponds to the averaged position from three measurement cycles and the error bars represent the spread in the measurements.
