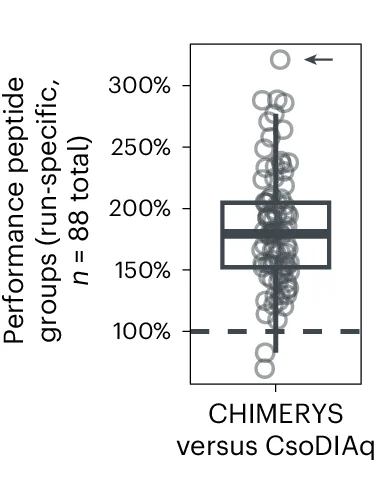

Boxplot visualizing the ratio of the number of peptide groups identified at 1% run-specific peptide group FDR by CHIMERYS versus CsoDIAq in each sample. The bottom (lower hinge), center and top of the box (upper hinge) are the first, second (median) and third quartile of the data points. The upper whisker extends from the hinge to the largest value no further than 1.5 x IQR from the hinge. IQR, or interquartile range, is the distance between the first and third quartiles. The lower whisker extends from the hinge to the smallest value at most 1.5 x IQR of the hinge. All individual data points are shown (n = 88 raw files). The arrow refers to the raw file referenced in e - h.
