Microscopy from Scientific Research

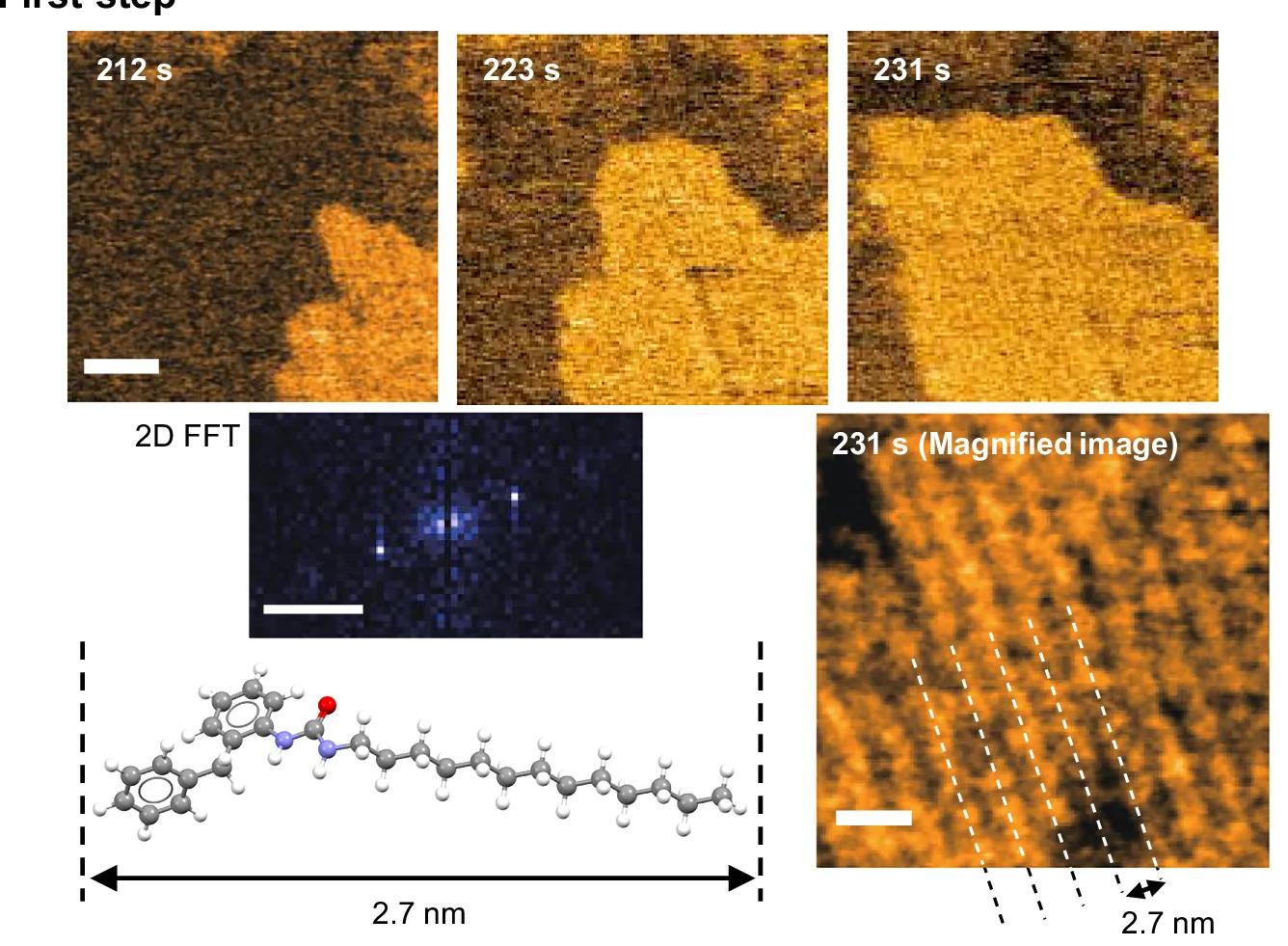

Clipped phase-contrast HS-AFM images of the 2.0 mM UC13 in EMI-Tf 2 N in the first step. Scale bar: 20 nm. Imaging rate: 1 s/frame. Magnified phase-contrast image (scale bar: 5 nm). 2D fast Fourier transform (FFT) pattern (Scale bar: 0.5 nm - 1 ). Energy-minimized structure of UC13 . See also Supplementary Movie 3. Representative snapshots from more than five independent experiments are shown.
