Line Plot from Scientific Research

CC-BY
2
Views
0
Likes
Citation

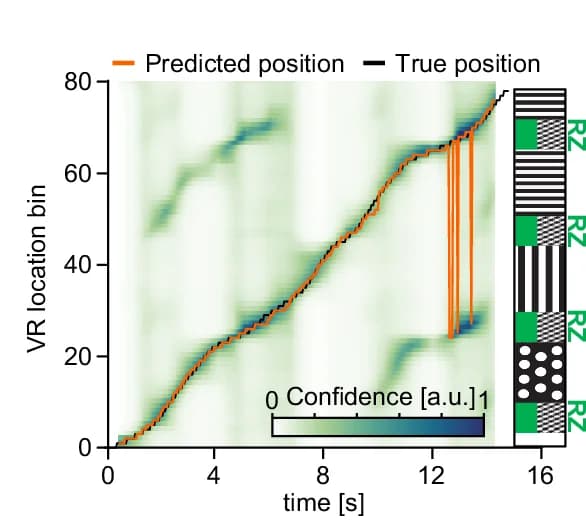

Predicted corridor positions generated by a Bayesian decoder (orange) from neural F/F traces and true position (grey) of a single exemplary trial. The background heatmap visualizes frame-wise decoder confidence (arbitrary units) for each VR position bin. The bin with the highest confidence is the prediction of the decoder for each frame. Prediction errors (e.g. around second 13) can often be attributed to the confusion of different reward zones with similar wall patterns.
#Line Plot#Heatmap#Corridor Positions#Bayesian Decoder#Neural Traces#True Position#Prediction Errors
