Box Plot from Scientific Research

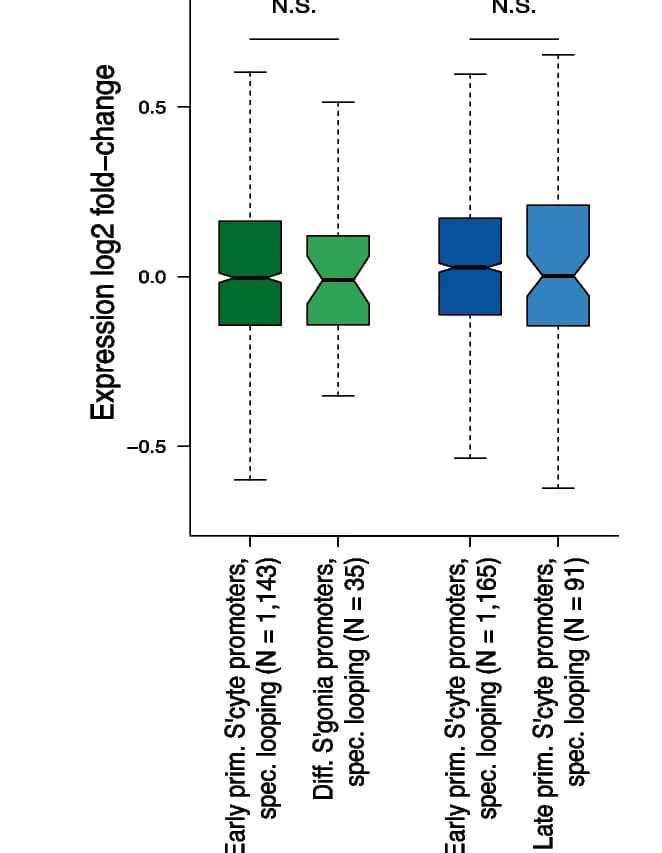

Looping does not result in gene activation in early primary spermatocytes. Y axis: log2 fold-change of gene expression, with log2 fold-values > 0 indicating higher expression in early primary spermatocytes. The number ( N ) of promoters located in cell-type specific loops is indicated in each comparison, and the Wilcoxon signed-rank test was used to compare the median log2 fold-change between categories. Green boxplots: early primary spermatocytes versus differentiating spermatogonia; promoters are either in early primary spermatocyte-specific loops (left) or in differentiating spermatogonia-specific loops (right). Blue boxplots: early versus late primary spermatocytes; promoters are either in early (left) or late (right) primary spermatocyte-specific loops
