Volcano Plot from Scientific Research

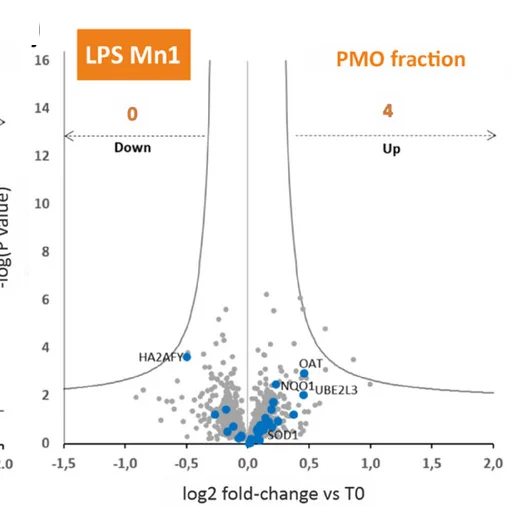

effects on protein levels in comparison with untreated cells at T0. Volcano plots of differentially quantified proteins in the plasma membrane & organelles (PMO) fractions between LPSMn1treated cells and untreated cells. The y-axis t-test p-value in -log10 scale (significant if p-value < 0.05) is plotted against the fold-change between two conditions in log2 scale (x-axis).[47]Increased levels appear with positive log2 values and decreased levels with negative log2 values. proteins whose level was modified by LPS (i.e., highlighted in blue in a) and whose level has returned to that of untreated conditions in LPSMn1condition are indicated in blue. See FigureS.2.4, TablesS.2.4andS.2.5for complete detailed information.
