Volcano Plot from Scientific Research

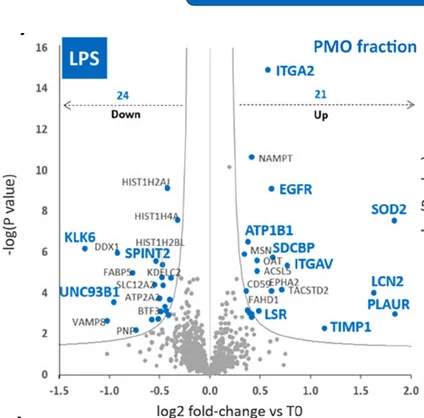

Volcano plots of differentially quantified proteins in the plasma membrane & organelles (PMO) fractions between LPS treated cells and untreated cells. The y-axis t-test p-value in -log10 scale (significant if p-value < 0.05) is plotted against the fold-change between two conditions in log2 scale (x-axis). Increased levels appear with positive log2 values and decreased levels with negative log2 values. The name of the proteins mentioned in the main text are highlighted in blue (closed and open symbols, respectively). See TablesS.2.1andS.2.2, andS.2.4for complete detailed information.
