Line Plot from Scientific Research
CC-BY
0
Views
0
Likes
Citation

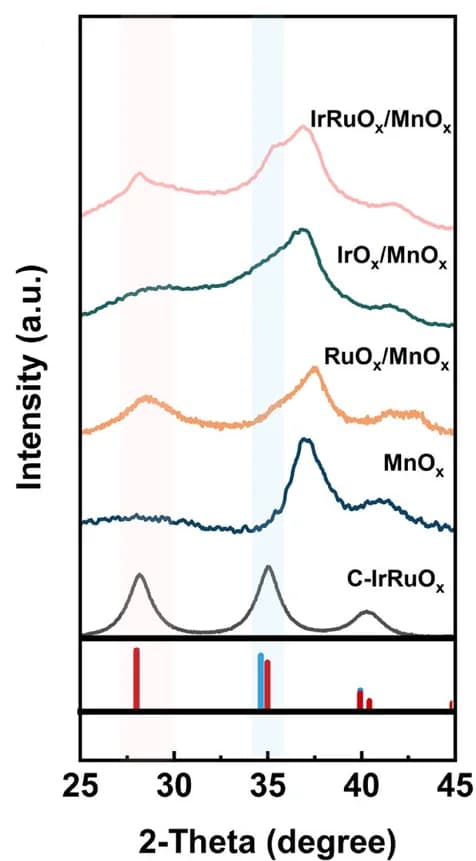

XRD patterns. The red reference pattern refers to standard IrO2(PDF#15-0870), and the blue reference pattern refers to RuO2(PDF#43-1027). Pink and blue shadows show the 2-theta regions of (110) and (101) of rutile IrO2and RuO2.
