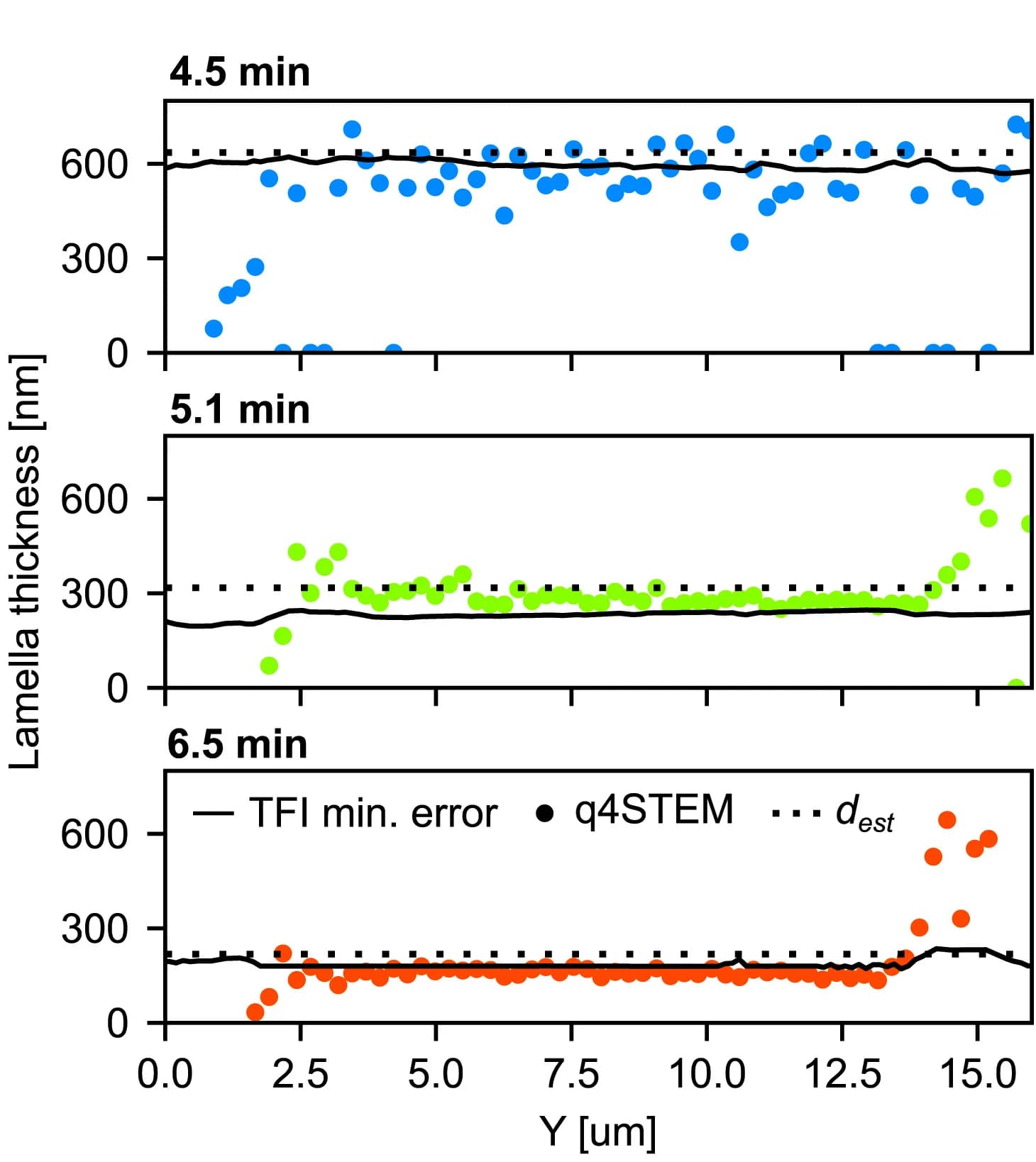

Lamella thickness line traces along the y direction at three different time points. Thickness measurements include q4STEM (colored dots, see also D, top), the error minimization of the normalized reflectivity (black lines, see also D, bottom), and estimates from geometry dest (dotted black lines). The increase in measured thickness around y = 15 μm is due to the increased density of the Pt GIS layer. All scale bars: 5 μm.
