Scatter Plot from Scientific Research

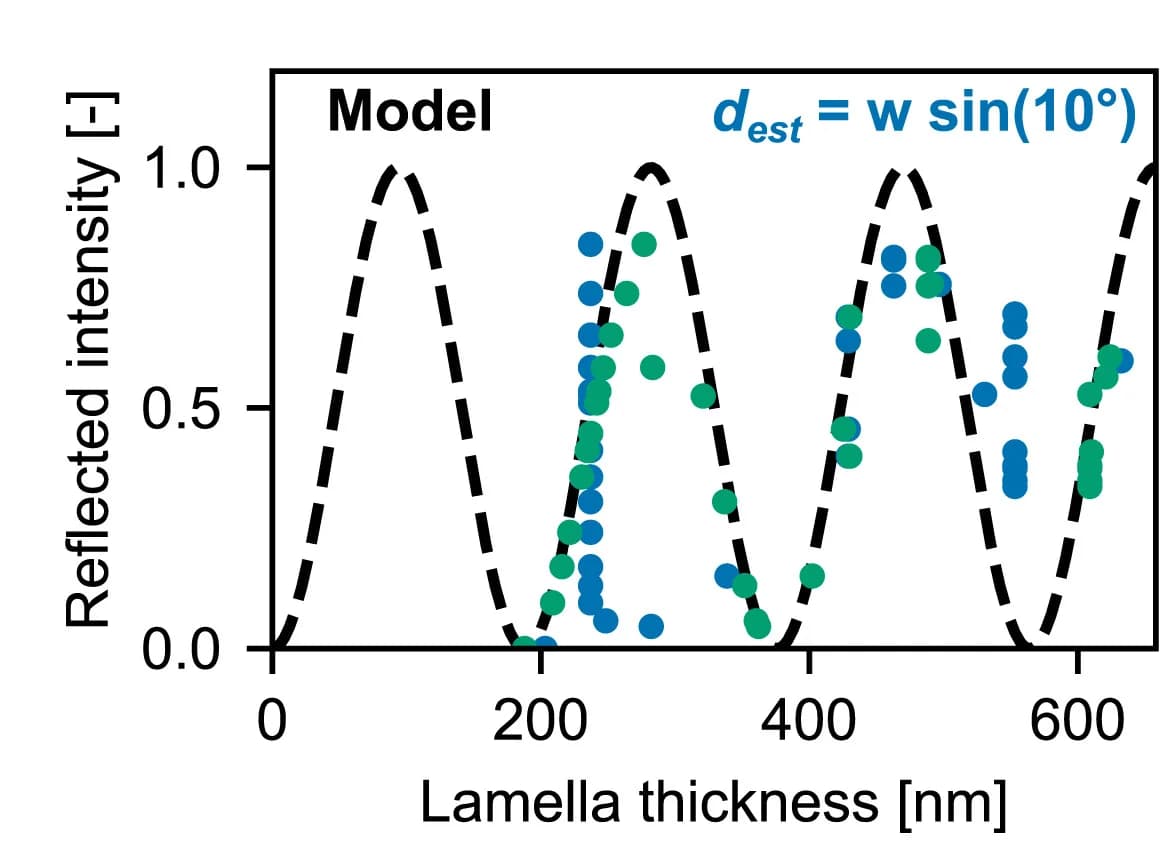

With milling progression, the reflected intensity is recorded (at the blue cross in A), along with the lamella thickness estimated est=wsin(10°) from the milling geometry (blue scatter). Error minimization is performed using a normalized version of the reflectivity model (dashed black), which outputs a refined lamella thickness estimate (green scatter) and finally yields
