Line Plot from Scientific Research

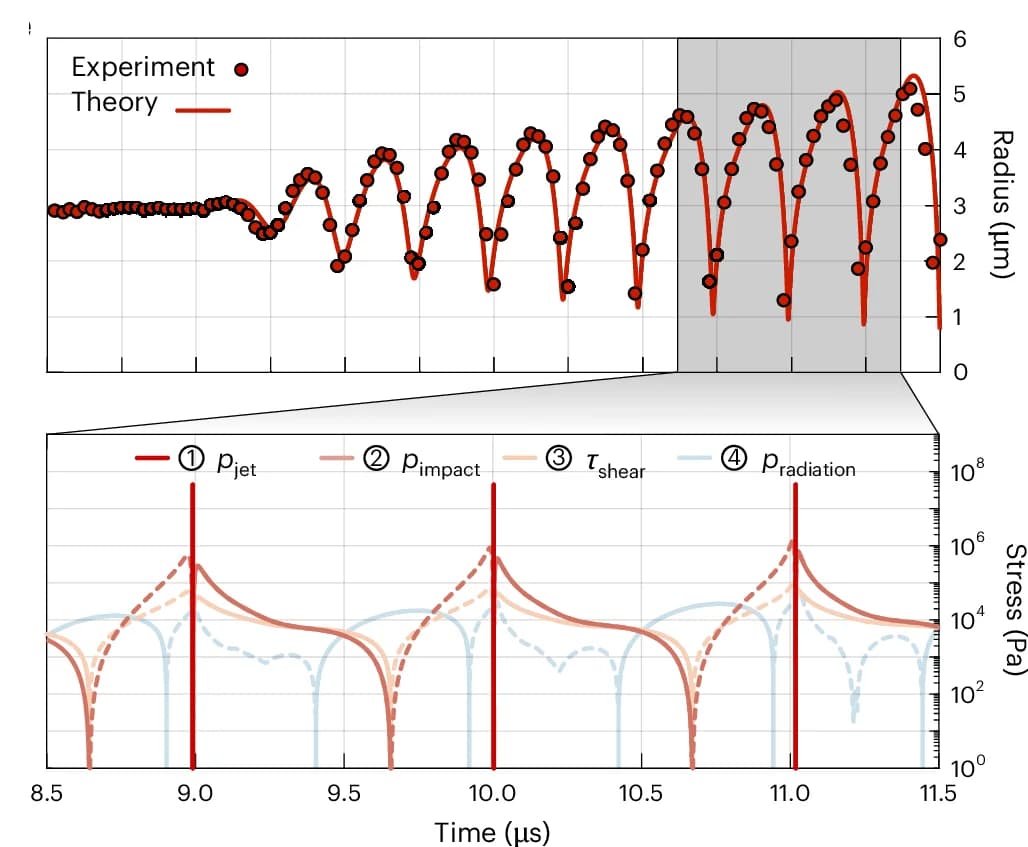

Stress evolution over time in the logarithmic scale of each stress mechanism (bottom), inferred from the radial dynamics of the microbubble depicted in Fig. 1d and characterized in Fig. 2 (top). The solid lines represent stresses directed towards the substrate or outwards from the bubble, whereas the dashed lines indicate the opposite.
