Scatter Plot from Scientific Research

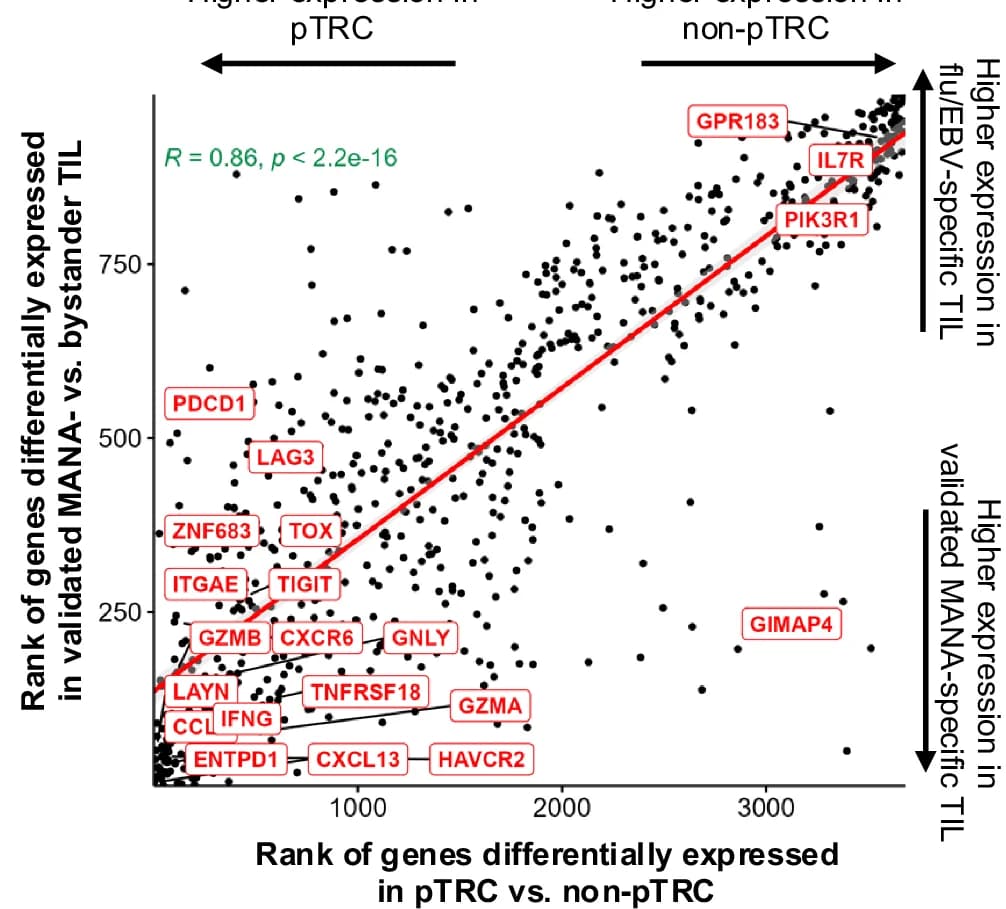

Spearman’s correlation between the ranks of differentially expressed genes in pTRC and non-pTRC vs. differentially expressed genes in functionally validated MANA- and bystander (flu- or EBV-specific) TIL. Genes were ranked by log2 fold change from top (upregulated in pTRC or MANA-specific TIL) to the bottom (downregulated in pTRC or MANA-specific TIL). Box plots represent minima maxima as whiskers, the median as the center line within each box, and the interquartile range (IQR) between 25 th and 75 th percentiles as the bounds of each box.
