Volcano Plot from Scientific Research

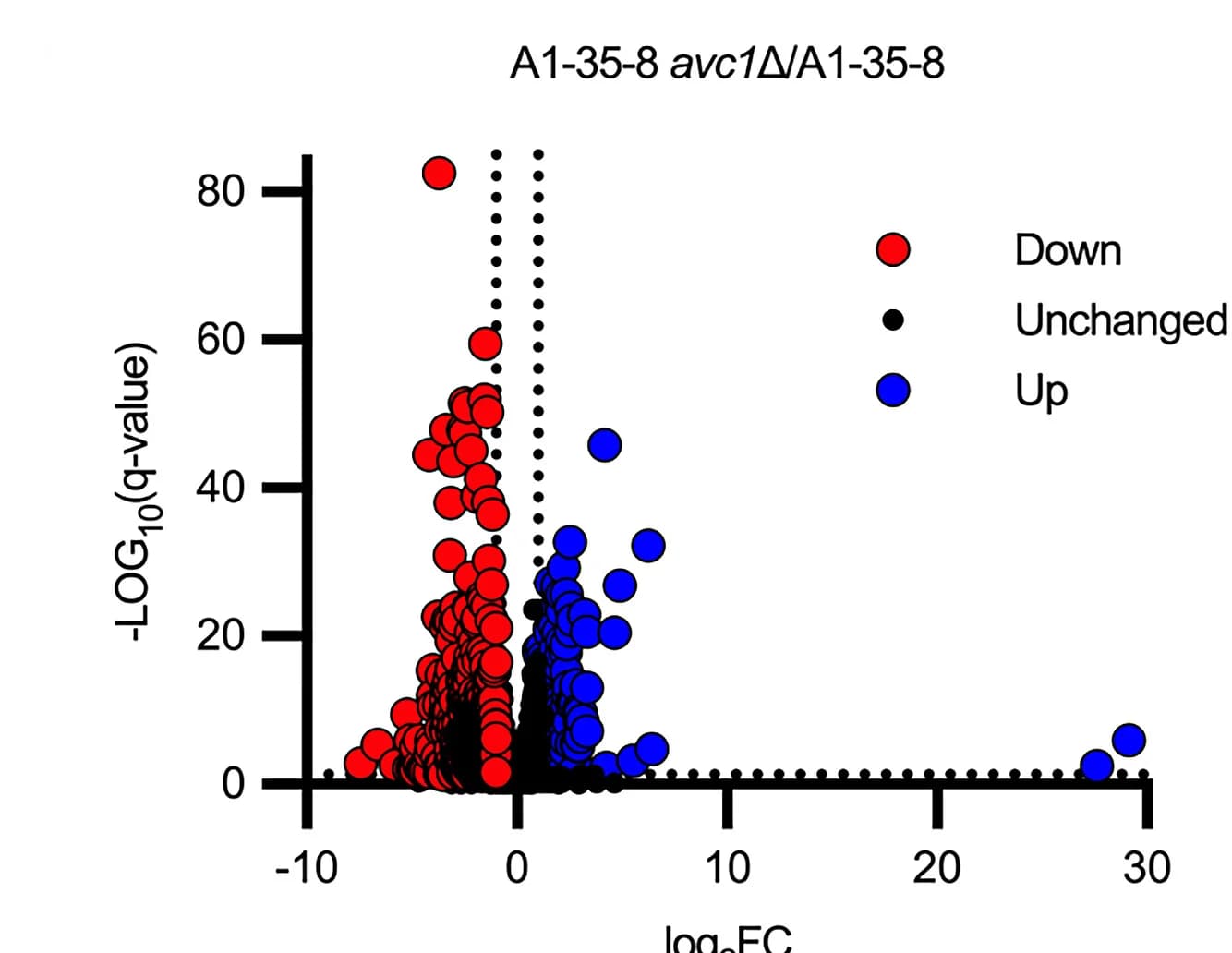

Volcano plot comparing the expression of CO2-responsive genes in the A1-35-8avc1Δ and parental CO2-sensitive environmental A1-35-8 strains, determined by RNA-seq following 24-h growth of biological triplicates in RPMI buffered with MOPS in 5% CO2. Dashed lines indicate cutoff values for significance of ±1 log2fold change from the parental strain and FDR < 0.05 by Benjamini, Krieger, and Yeuketiel method.
